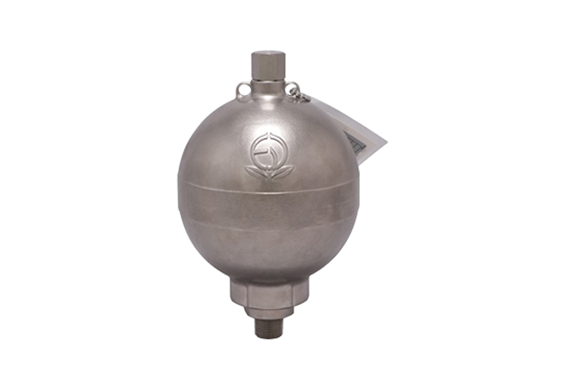

Venn WHA-6 type water hammer preventer (for water)
Manufacturer: Venn Co., Ltd.
Model: WHA-6
Features
- The enclosed air pressure can adjust according to the installation location.
- Stainless steel used for the main body material, and the new structure provides excellent durability.
- Water hammer absorption member (bladder) can replace.
Specifications
| Product code | WHA6-D |
|---|---|
| Valve type | Water hammer preventer |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | Water / tap water |
| Fluid temperature | 5-40 ℃ |
| Applicable pressure | 0.98MPa or less |
| Maximum water hammer pressure | 1.96MPa |
| Encapsulation air pressure | MAX.0.98MPa (Standard (factory): 0.35MPa ) Adjust the filling pressure to 70 to 80% of the hydraulic pressure before use. |
| Internal volume | 2L (absorption volume: 1L) |
| End connection | JIS R screw |
| Mounting posture | Vertical mounting with piping connection down |
| Material body | SCS |
| Material bladder | EPDM |
