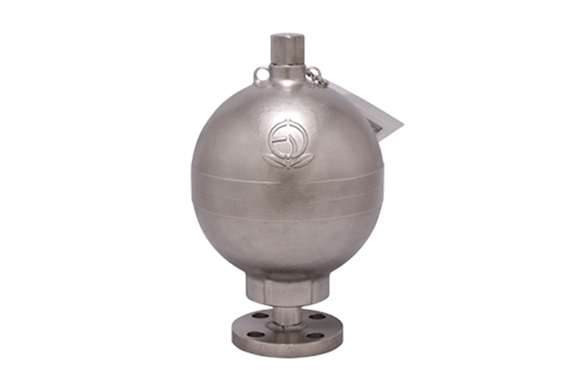

Venn WHA-6F Water Shock Predator (for Water)
Manufacturer: Venn Co., Ltd.
Model: WHA-6F
Features
- The encapsulation air pressure can adjust according to the installation location.
- The main body material is stainless steel, and the new structure makes it highly durable.
- The water hammer absorbing member (bladder) can replace.
Specifications
| Product Symbol | WHA6F-D |
|---|---|
| Types of valves | Water Hammer Preventer |
| Nominal diameter | 15～25（1/2～1） |
| Applicable fluids | Water and tap water |
| Fluid temperature | 5～40℃ |
| Application pressure | Less than 0.98MPa |
| Maximum water hammer pressure | 1.96MPa |
| Encapsulation air pressure | MAX.0.98MPa (Standard (Ex-Factory): 0.35MPa Adjust the encapsulation pressure to 70~80% of the dynamic water pressure. |
| Internal Volume | 2L (Absorption Volume: 1L) |
| End connection | JIS 10K FF Flange |
| Mounting Position | Vertical mounting with piping connection down |
| Material: Body | SCS |
| Material: Brada | EPDM |
