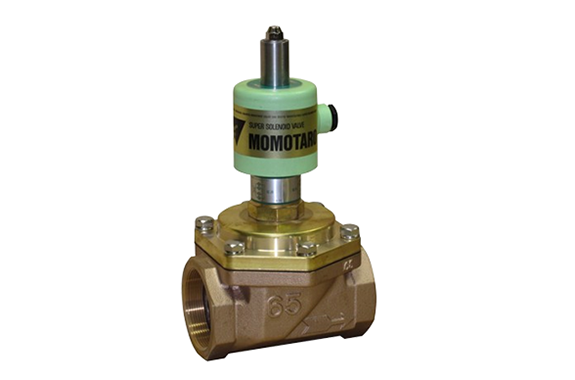

Venn WS-12C Solenoid Valve (for Liquids and Gases)
Manufacturer: Venn Co., Ltd.
Model: WS-12C
Features
- It is suitable for both liquids and gases.
- In addition, it can use across a wide pressure range from 0 to 1.0 MPa.
- Moreover, it equips with a water hammer mitigation mechanism.
- The series includes both energized-open and energized-closed types.
Specifications
| Product Symbol | WS12C-F |
|---|---|
| Types | diaphragm |
| Activate | Energized and closed |
| Nominal diameter | 65（2 1/2） |
| Applicable fluids | Water & Air・Inert gas・Oil (about kerosene, light oil) |
| Fluid temperature | 5～60℃ |
| Fluid viscosity | Below 20cSt |
| Application pressure | 0～1.0MPa |
| Minimum differential pressure before and after the valve | 0MPa |
| Allowable leakage | None (Pressure gauge visual inspection, gas is 0.02~1.0MPa) |
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
| Insulation type | Type B |
| Ambient temperature | 5～60℃ |
| Protective structure | Dustproof, splash-proof, and indoor use (If used outdoors, please use the TB-03 terminal box together.) |
| End connection | JIS Rc Screw |
| Mounting Position | Upright mounting with coils up on horizontal piping |
| Rated current | AC100V：0.60A、AC200V：0.30A |
| Starting current | AC100V：2.50A、AC200V：1.25A |
| Material: Body | CAC406 |
| Material: Diaphragm | NBR |
