Manufacturer: Venn Co., Ltd.

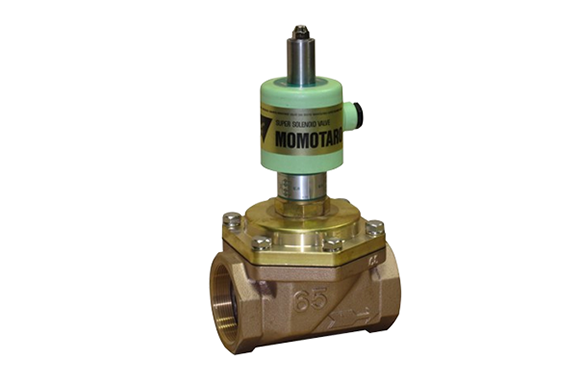

Model: WS-12CV
Features
- It is more than three times as durable as our conventional products for nominal diameters of 50 or less.
- In addition, it can operate from a vacuum level of 3.4 kPa·A, provided the inlet pressure is equal to or higher than the outlet pressure.
- Moreover, it is suitable for applications such as plastic molding, vacuum packaging machines, and powder transport.
- Finally, for nominal diameters of 50 or less, the coil exterior makes of heat-resistant thermosetting resin.
Specifications
| Product Symbol | WS12CV-F |
|---|
| Types | diaphragm |
|---|
| Activate | Energized and closed |
|---|
| Nominal diameter | 65（2 1/2） |
|---|
| Applicable fluids | Air |
|---|
| Fluid temperature | 5～60℃ |
|---|
| Application pressure | 3.4kPa・A~0.3MPa (inlet ≧ outlet pressure) |
|---|
| Minimum differential pressure before and after the valve | 0MPa |
|---|
| Allowable leakage | None (at pressure gauge visual 0.02~0.3MPa) |
|---|
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
|---|
| Insulation type | Type B |
|---|
| Ambient temperature | 5～60℃ |
|---|
| Protective structure | Dust-proof, splash-proof, indoor(For outdoor use, please use the TB-03 terminal box together.) |
|---|
| End connection | JIS Rc Screw |
|---|
| Mounting Position | Upright mounting with coils up on horizontal piping |
|---|
| Material: Body | CAC406 |
|---|
| Material: Diaphragm | NBR |
|---|
