Manufacturer: Venn Co., Ltd.

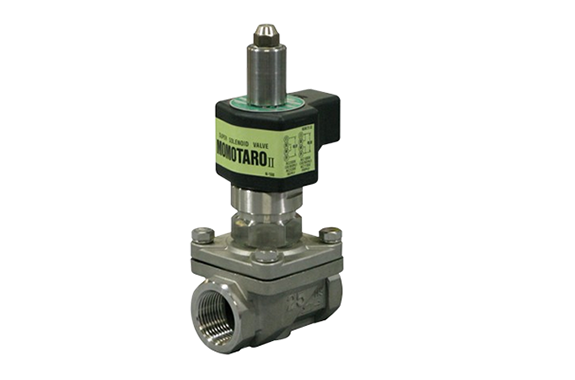

Model: WS-25C
Features
- It is more than three times as durable as our conventional products.
- In addition, it can use across a wide pressure range from 0 to 1.0 MPa.
- Moreover, it equips with a water hammer mitigation mechanism.
- Vertical and horizontal installation supports.
- Finally, the coil exterior makes of heat-resistant thermosetting resin.
Specifications
| Product Symbol | WS25C-D |
|---|
| Types | diaphragm |
|---|
| Activate | Energized and closed |
|---|
| Nominal diameter | 10～50（3/8～2） |
|---|
| Applicable fluids | Water & Air・Inert gas・Oil (about kerosene, light oil) |
|---|
| Fluid temperature | 5～60℃ |
|---|
| Fluid viscosity | Below 20cSt |
|---|
| Application pressure | 0～1.0MPa |
|---|
| Minimum differential pressure before and after the valve | 0 MPa (0.03 MPa if the coil is horizontal) |
|---|
| Allowable leakage | None (Pressure gauge visual inspection, gas is 0.02~1.0MPa) |
|---|
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
|---|
| Insulation type | Type B |
|---|
| Ambient temperature | 5～60℃ |
|---|
| Protective structure | Dustproof, splash-proof, and indoor use (If used outdoors, please use the TB-03 terminal box together.) |
|---|
| End connection | JIS Rc Screw |
|---|
| Mounting Position | Horizontal and vertical (excluding coils facing down to mounting piping) |
|---|
| Material: Body | SCS |
|---|
| Material: Diaphragm | NBR |
|---|
