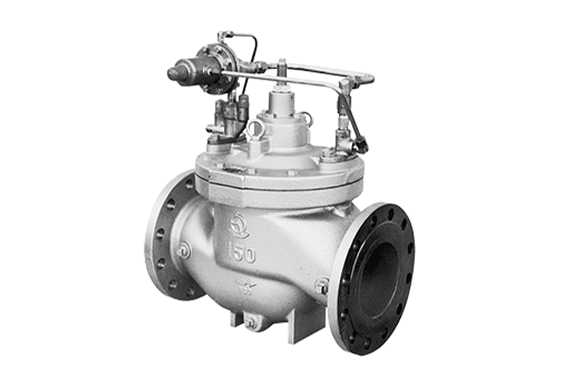

Manufacturer: Venn Co., Ltd.
Model: WVD-02
Features
- Stable operation is easy to achieve by adjusting the needle valve opening to suit the usage conditions.
- In addition, it functions as a pump relief valve in a closed circuit and closes quickly when the pump stops.
- Moreover, the main valve and pilot valve can be easily disassembled.
- As a result, maintenance tasks such as adjustment, repair, and parts replacement are simple.
- Furthermore, the lift-limiting mechanism helps control and limit overflow.
Specifications
| Product code | WVD02-B | WVD02-L |
|---|
| Valve type | Differential pressure control valve |
|---|
| Nominal diameter | 80-200 (3-8) |
|---|
| Applicable fluid | Water / hot water |
|---|
| Fluid temperature | 5-60 ° C |
|---|
| Primary side applied pressure | 1.0MPa or less |
|---|
| Set differential pressure adjustment range | 0.05-0.3MPa |
|---|
| Blow-down pressure | Set pressure x 20% or less (minimum value 0.03MPa) |
|---|
| Accumulation | Within 0.05MPa |
|---|
| End connection | JIS 10K RF flange |
|---|
| Pressure resistance test (water pressure) | 1.5MPa at water pressure |
|---|
| Mounting posture | Horizontal / vertical |
|---|
| Material body | FC | FCD |
|---|
| Material Valve seat | CAC406 |
|---|
| Material parts | NBR |
|---|
| Basic valve painting inner surface | Liquid epoxy resin for water supply |
|---|
