Venn Co.

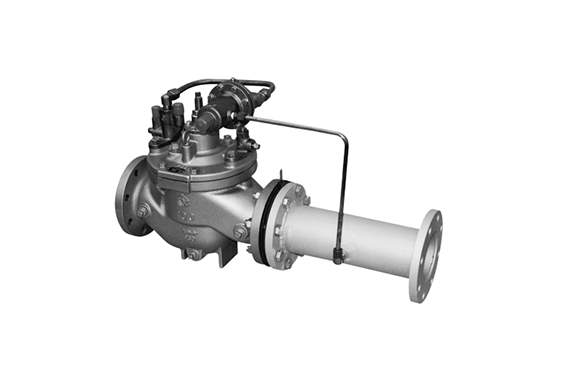

Venn WVF-02 Constant Flow Valve (for Water and Hot Water)
Manufacturer: Venn Co., Ltd.
Model: WVF-02
Features
- Sensitivity adjustment according to the opening degree of the needle valve according to the usage condition allows for easy and stable operation.
- The basic and pilot valves can easily disassemble and easy to maintain, including adjustments, repairs, and parts replacement.
Specifications
| Product Symbol | WVF02-B |
|---|---|
| Types of valves | Constant flow valve |
| Nominal diameter | 80～200（3～8） |
| Applicable fluids | Water and hot water |
| Fluid temperature | 5～60℃ |
| Primary Side Application Pressure | 0.05～1.0MPa |
| Minimum differential pressure | 0.05MPa |
| End connection | JIS 10K RF Flange |
| Mounting Position | Horizontal and vertical freedom |
| Basic valve material body | FC or FCD |
| Basic valve material: key part diaphragm | NBR |
| Basic valve material Key part disc | NBR |
| Basic valve material Valve seat | CAC406 |
| Basic valve coating inner surface | Liquid epoxy resin for water supply |
| Basic valve coating exterior | Metallic Blue |
