Venn Co.

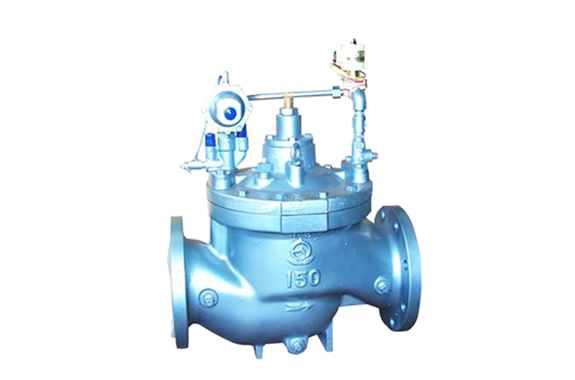

Venn WVME-02 Primary Pressure Regulating Valve (Electromagnetic Operated Type)
Manufacturer: Venn Co., Ltd.
Model: WVME-02
Features
- Easy and stable operation is achieved by adjusting the needle valve opening to suit the usage conditions.
- In addition, the main valve and pilot valve can be easily disassembled.
- As a result, maintenance tasks such as adjustment, repair, and parts replacement are simple.
- Furthermore, the lift-limiting mechanism allows overflow to be controlled.
Specifications
| Product Symbol | WVME02-BL | WVME02-BH |
|---|---|---|
| Types of valves | Primary pressure regulating valve | |
| Nominal diameter | 80～200（3～8） | |
| Applicable fluids | Water and hot water | |
| Fluid temperature | 5～60°C | |
| Primary Side Application Pressure | 1.0MPa or less | |
| Set pressure adjustment range | 0.05～0.35MPa | 0.3 ～ 1.0MPa |
| Blowing pressure | Set pressure× within 20% (minimum 0.03MPa) | Set pressure × within 15% |
| Accumulation | Set pressure× within 10% (minimum 0.03MPa) | |
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared | |
| Protective structure | Dustproof, splash-proof, and indoor use (If used outdoors, please use the TB-03 terminal box together.) | |
| End connection | JIS 10K RF Flange or Water Partition Valve Flange | |
| Pressure Test (Water Pressure) | JIS 10K RF Flange or Water Partition Valve Flange | |
| Mounting Position | Horizontal and vertical (upright mounting on horizontal piping when used to prevent water fall) | |
| Basic valve material body | FC | |
| Basic valve material Key part diaphragm disc | NBR | |
| Basic valve material Key part valve seat | CAC406 | |
| Basic valve coating inner surface | Liquid epoxy resin for water supply | |
| Basic valve coating exterior | Metallic Blue | |
