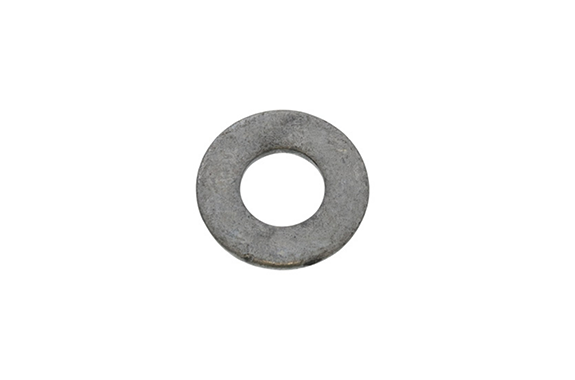

W0-0Z10 HDZ35 Round Washers (JIS)
Model: W0-0Z10
Dia range:8～25.5
Length range:18～48
Iron (or standard)
Hot dip galvanized.
.

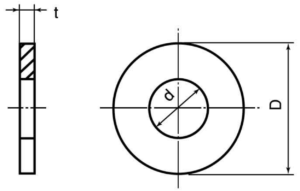

| Nominal Diameter | Inner Diameter (d) | Outer Diameter (D) | Thickness (t) |
|---|---|---|---|
| 8 | 8.5 | 18 | 1.6 |
| 10 | 10.5 | 22 | 1.6 |
| 12 | 12.5 | 26 | 2.3 |
| 14 | 15 | 30 | 2.6 |
| 16 | 17 | 32 | 2.6 |
| 20 | 21 | 40 | 3.2 |
| 22 | 23.5 | 44 | 3.2 |
