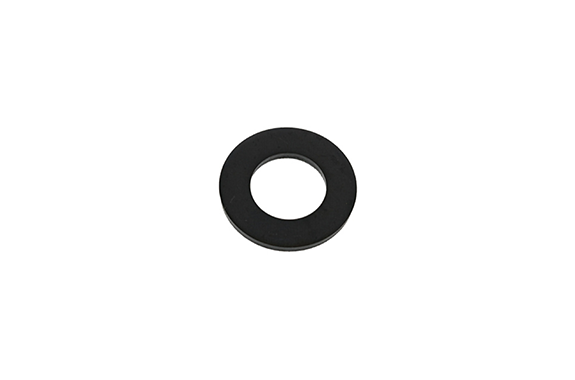

W0-1003 W2008 (Shaped A (300HV))
Model: W0-1003
S45C, SUS316L.
Plain, Zinc blue cr6+, Zinc yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black, black oxide.
| Nominal Diameter | Inner Diameter (d) | Outer Diameter (D) | Thickness (t) | |||
|---|---|---|---|---|---|---|
| 8 | 8.4 | +0.22 | 16 | -0.43 | 1.6 | ±0.2 |
| 10 | 10.5 | +0.27 | 20 | -0.52 | 2.0 | |
| 12 | 13 | 24 | 2.5 | |||
| 14 | 15 | 28 | 2.5 | |||
| 16 | 17 | 30 | 3.0 | ±0.3 | ||
| 20 | 21 | +0.33 | 37 | -0.62 | 3.0 | |
| 22 | 23 | 39 | 3.0 | |||
| 24 | 25 | 44 | 4.0 | |||
| 27 | 28 | 50 | 4.0 | |||
| 30 | 31 | +0.39 | 56 | -0.74 | 4.0 | |
| 33 | 34 | +0.62 | 60 | -1.2 | 5.0 | ±0.6 |
| 36 | 37 | 66 | 5.0 | |||
| 42 | 45 | 78 | 8.0 | ±1.0 | ||
※ Hardness Range 300HV ~ 370HV
