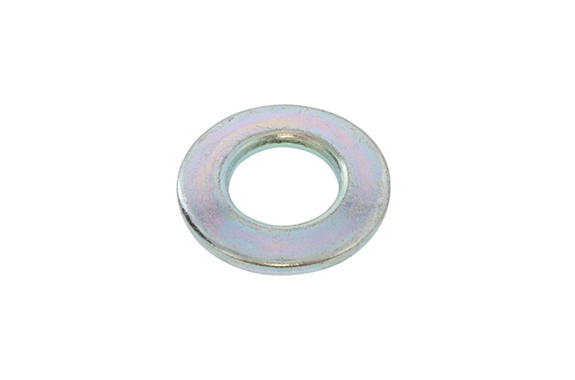

W2-0010 Disk SW JIS For Screw (Light)
Model: W2-0010
Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc yellow cr6+, Trivalent zinc cr+3 color white, Trivalent zinc cr+3 color black,…

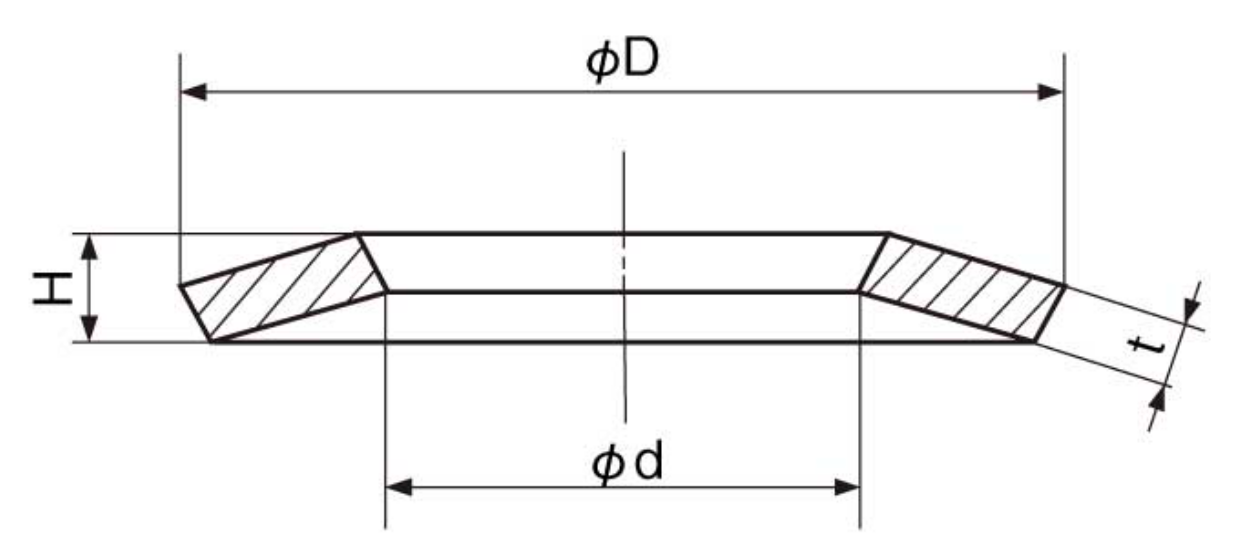

| Designation | Inner Diameter d | Outer Diameter D | Radial Load (1L) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard | Tolerance | Standard | Tolerance | Thickness t | Standard Height H | Height After Testing H’ (Minimum) Note | Test Load (kN) Note | ||
| Standard | Tolerance | ||||||||
| JIS M 3-1L | 3.2 | +0.20 0 | 7 | 0 -0.25 | 0.5 | ±0.035 | 0.75 | 0.6 | 1.03 |
| JIS M 4-1L | 4.3 | 9 | 0.7(SUS:0.8) | ±0.045 | 0.95 | 0.8 | 1.77 | ||
| JIS M 5-1L | 5.3 | 10 | 0.8 | ±0.05 | 1.1 | 0.9 | 2.94 | ||
| JIS M 6-1L | 6.4 | +0.25 0 | 12.5 | 0 -0.30 | 1 | ±0.055 | 1.35 | 1.15 | 4.12 |
| JIS M 8-1L | 8.4 | 17 | 1.4※1 | ±0.07 | 1.85 | 1.6 | 7.45 | ||
| JIS M10-1L | 10.5 | +0.30 0 | 21 | 0 -0.40 | 1.8※2 | ±0.085 | 2.3 | 2 | 11.8 |
| JIS M12-1L | 13 | 24 | 2.2※2 | ±0.10 | 2.7 | 2.45 | 17.7 | ||
| JIS M14-1L | 15 | 28 | 2.5 | 3.15 | 2.8 | 23.5 | |||
| JIS M16-1L | 17 | 30 | 2.8 | 3.5 | 3.1 | 32.4 | |||
| JIS M18-1L | 19 | +0.35 0 | 34 | 0 -0.50 | 3 | ±0.11 | 3.9 | 3.35 | 39.2 |
| JIS M20-1L | 21 | 37 | 3.5 | 4.4 | 3.85 | 49 | |||
| JIS M22-1L | 23 | 39 | 3.5 | 4.7 | 3.9 | 61.8 | |||
| JIS M24-1L | 25 | 44 | 4 | 5.2 | 4.45 | 71.6 | |||
| JIS M27-1L | 28 | 50 | 4.5 | ±0.14 | 5.9 | 5 | 93.2 | ||
| JIS M30-1L | 31 | +0.40 0 | 56 | 0 -0.70 | 5 | 6.6 | 5.6 | 118 | |
Note: Stainless steel products are made to match the shape of spring washers, but they do not have spring properties.
※1: Stainless steel products have a thickness of 1.5 mm.
※2: Stainless steel products have a thickness of 2.0 mm.
