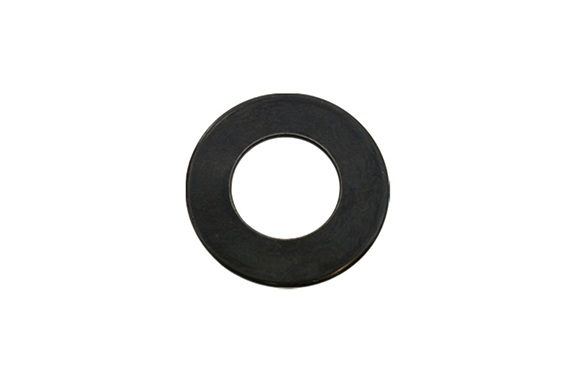

W2-0050 Disk Spring JIS B2706L

Model: W2-0050

Iron (or standard), Stainless steel (303, 304,…).
Plain, Zinc yellow cr6+.

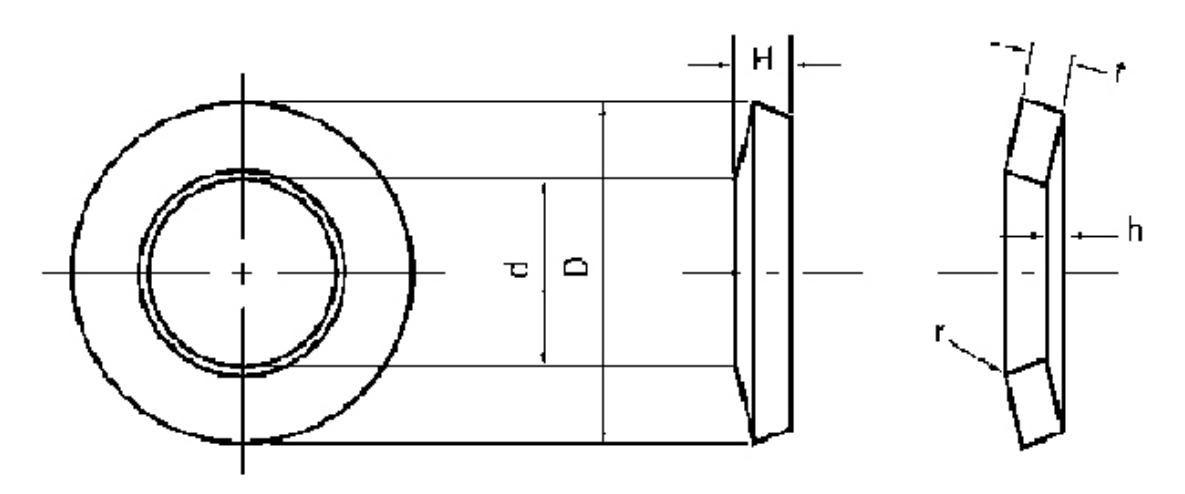

Designation	d		D		t		h	H0		Test Load		Contact Stress (MPa)
Designation	Dimension	Tolerance	Dimension	Tolerance	Dimension	Tolerance	Dimension	Dimension	Tolerance	kgf	N	ΣI	ΣII	ΣIII
M4-L	4.2	+0.15 0	8.0	0 -0.15	0.3	±0.02	0.25	0.55	±0.10	12	117.7	-2920	1336	1632
M5-L	5.2		10.0	0 -0.15	0.4	±0.025	0.30	0.70		21	205.9	-2905	1449	1620
M6-L	6.2		12.5	0 -0.20	0.5		0.35	0.85		30	294.2	-2656	1401	1399
M7-L	7.2		14.0		0.5		0.40	0.90		28	274.6	-2508	1191	1373
M8-L	8.2		16.0		0.6	±0.03	0.45	1.05		42	411.9	-2549	1274	1387
M9-L	9.2		18.0		0.7		0.50	1.20		58	568.8	-2579	1336	1398
M10-L	10.2	+0.20 0	20.0	0 -0.25	0.8		0.55	1.35		76	745.3	-2602	1384	1405
M11-L	11.2		22.5		0.8		0.65	1.45		72	706.1	-2529	1192	1346
M12-L	12.2		25.0		0.9	±0.04	0.70	1.60		88	863.0	-2453	1200	1279
M14-L	14.2		28.0		1.0	±0.04	0.80	1.80		115	1127.8	-2505	1192	1354
M16-L	16.3		31.5	0 -0.30	1.2	±0.05	0.90	2.10	±0.15	175	1716.2	-2633	1314	1446
M18-L	18.3	+0.25 0	35.5		1.2	±0.05	1.00	2.20		155	1520.0	-2366	1086	1301
M20-L	20.4		40.0		1.6	±0.055	1.15	2.75		320	3138.1	-2749	1418	1487
M22-L	22.4		45.0		1.8		1.30	3.10		400	3922.7	-2761	1424	1461
M25-L	25.4		50.0		2.0		1.40	3.40		485	4756.2	-2659	1398	1432
M28-L	28.5		56.0	0 -0.35	2.0		1.60	3.60		455	4462.0	-2505	1192	1359
M30-L	31.0	+0.30 0	63.0		2.5	±0.065	1.75	4.25	±0.20	735	7207.9	-2614	1380	1367
M35-L	36.0		71.0		2.5	±0.065	2.00	4.50		685	6717.6	-2435	1159	1316
M40-L	41.0		80.0		3.0	±0.08	2.30	5.30		1070	10493.0	-2620	1288	1428
M45-L	46.0		90.0	0 -0.40	3.5		2.50	6.00		1440	14122.0	-2579	1336	1397
M50-L	51.0		100.0	0 -0.40	3.5		2.80	6.30		1335	13092.0	-2407	1144	1308
