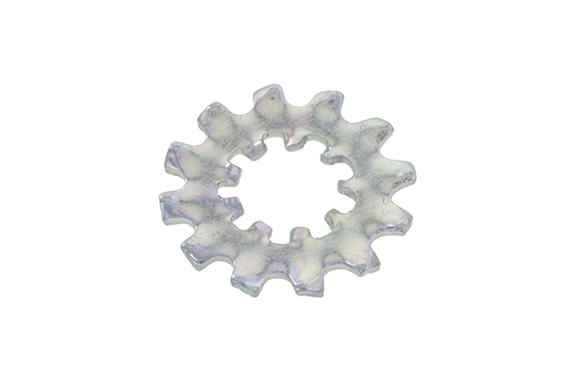

W2-0460 Cogging W (Inside And Outside)
Model: W2-0460
Iron (or standard).
Zinc yellow cr6+, Trivalent zinc cr+3 color white.
| Designation | d | D | t | Number of Teeth (Note) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Standard Dimension | Tolerance | Inner teeth | Outer teeth | ||
| M4 | 4.3 | +0.2 0 | 15 | 0 -0.5 | 0.6 | ±0.04 | 8 | 12 | |
| M5 | 5.3 | ||||||||
| M6 | 6.4 | +0.3 0 | 17.5 | 0.8 | ±0.05 | 9 | |||
| M8 | 8.4 | 22.5 | 0 -0.6 | 0.9 | |||||
| M10 | 10.5 | +0.4 0 | 26 | 1 | ±0.055 | ||||
| M12 | 12.5 | 29 | 10 | 14 | |||||
| M14 | 14.5 | 32 | 0 -0.8 | 1.2 | ±0.065 | ||||
| M16 | 16.5 | 35 | 1.4 | ±0.07 | 12 | 16 | |||
Note: The number of teeth is a recommended value, so slight increases or decreases are acceptable.
