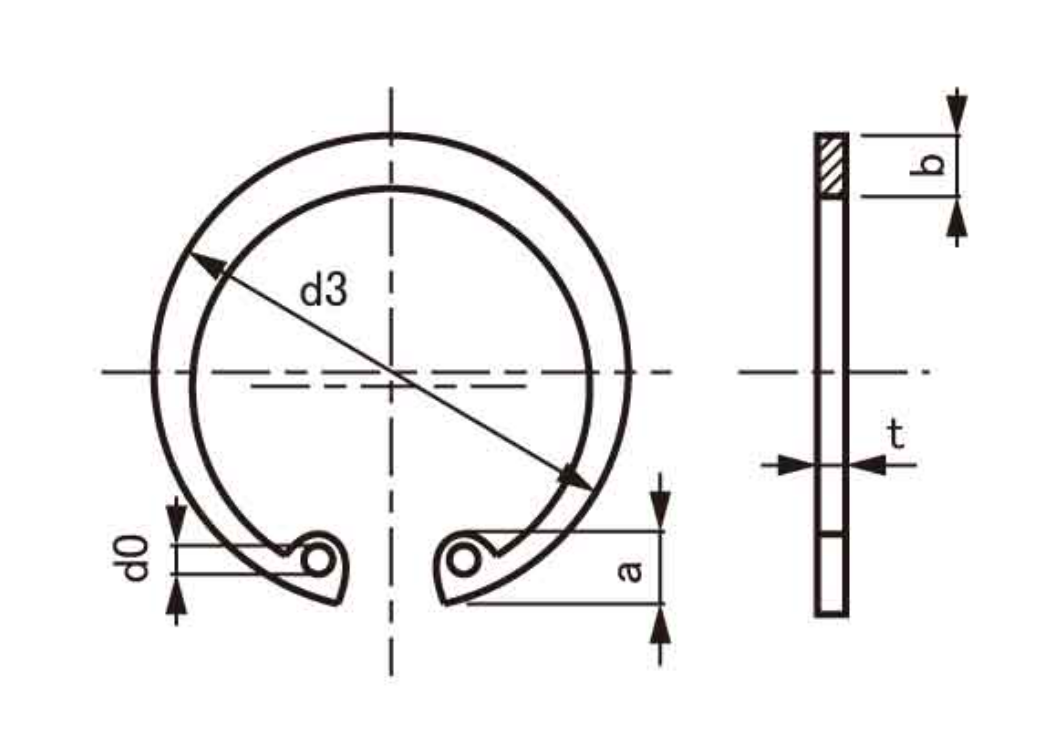

W2-0T00 C Snap Ring (H (Special Sp))
Model: W2-0T00
Iron (or standard).
Plain.
Unit: mm
| Part No. | d3 | t | b | a | d0 | ||
|---|---|---|---|---|---|---|---|
| Standard Dimension | Tolerance | Standard Dimension | Tolerance | Approx. | Approx. | Minimum | |
| 50010(10) | 10.7 | ±0.18 | 1 | ±0.05 | 1.8 | 3.1 | 1.2 |
| 50019(19) | 20.5 | ±0.2 | 2.5 | 4 | 2 | ||
| 50024(24) | 25.9 | 1.2 | ±0.06 | 2.5 | 43 | ||
| 50025(25) | 26.9 | 3 | 4.4 | ||||
| 50026(26) | 27.9 | 3 | 4.6 | ||||
| 50032(32) | 34.4 | ±0.25 | 3.5 | 5.2 | 2.5 | ||
| 50034(34) | 36.5 | 1.5 | 3.5 | 5.2 | |||
| 50035(35) | 37.8 | 3.5 | 5.2 | ||||
| 50040(40) | 43.5 | ±0.4 | 1.75 | ±0.07 | 4 | 5.7 | |
| 50042(42) | 45.5 | 4 | 5.8 | ||||
| 50045(45) | 48.5 | 4.5 | 5.9 | ||||
| 50047(47) | 50.5 | ±0.45 | 4.5 | 6.1 | |||
| 50052(52) | 56.2 | 2 | 5.1 | 6.5 | |||
| 50055(55) | 59.2 | 5.1 | 6.5 | ||||
| 50062(62) | 66.2 | 5.5 | 6.9 | ||||
| 50068(68) | 72.5 | 2.5 | ±0.08 | 6 | 7.4 | ||
| 50075(75) | 79.5 | 6.6 | 7.8 | ||||
| 50080(80) | 85.5 | ±0.55 | 7 | 8 | |||
| 50090(90) | 95.5 | 3 | ±0.09 | 7.6 | 8.3 | 3 | |
