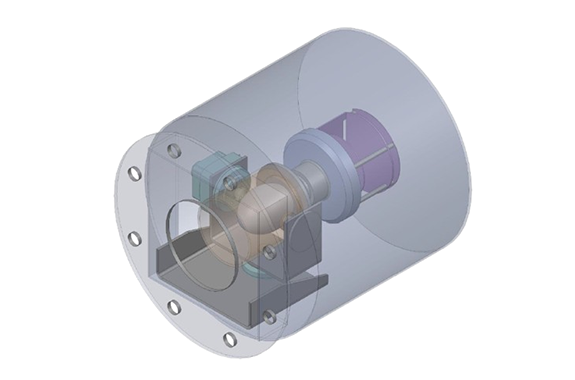

Wadeco 3D Profile Meter Milliscanner MWS-PM30
Manufacturer: Wadeco Corporation
Model: MWS-PM30
Features
- OK
in adverse environments mmWave is not affected by high temperatures, water vapor, flames, water flowing over the slabs, showers.
Use the option if you need heat protection. - 3D surface map and cross-sectional profile display
The 3D surface map and cross-sectional profile of the measured object are measured in a continuous manner and displayed on a computer.
The measured data is stored on the hard disk of the data processing PC. - Integrating the technology and experience cultivated through 3D measurement of high-reliability
blast furnace interior surfaces. It
can be measured stably over a long period of time even in a bad environment. - Compact and simple structureCompact
and simple, yet easy to maintain.
Specification
| Body form | Body: MWS-PM30 |
|---|---|
| Supply voltage | AC100V～AC240V |
| Measuring distance | Up to 15 m (from the bottom edge of the profile meter) |
| Operating Angle | X-direction: ±15° Y-direction: ±15° |
| Measurement accuracy | Approx. ±50 mm (1σ) *Depends on the object to be measured |
| Profile measurement time | Approx. 60sec. (depending on parameter setting) |
| Operating Ambient Temperature | -10℃ ～ +50℃ |
| structure | 3D Profile Meter Cover:SPCC , Control Box:SPCC |
| weight | 3D Profile Meter … Approx. 10kg , Control box … Approx. 10kg |
