Manufacturer: Wadeco Corporation

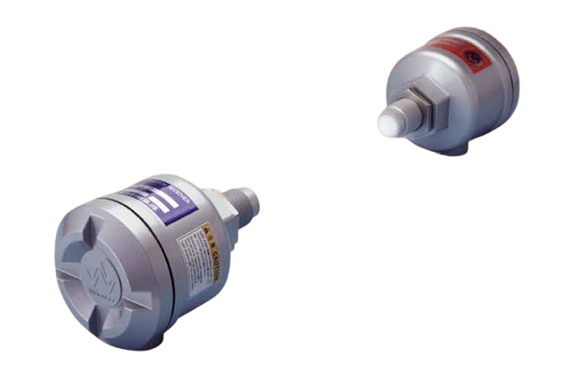

Model: MWS-ST/SR-2

Features

• No license requiredNo
  radio station license is required, saving the cost and hassle of applying for a license.
• Strong penetration power
  Achieves 3 times the detection distance compared to our company. It can easily penetrate thick adhesions such as molten ash.
• The transmitting and receiving areas without beam axis deviation are conical in shape, and there is no need to adjust the beam axis during installation, and there is no malfunction due to axis misalignment.
• Detection mode: Shut-off detection with switch switch or transmission detection can be selected.
• You can select a channel number that does not interfere with the set and install up to four pairs of sensors in close proximity.
• With reception level and sensitivity setpoint display One of the 15 LEDs is lit to display the reception level in 15 levels.
• On the other hand, one of the 15 LEDs is illuminated dim to display the sensitivity setpoint. The setpoint and reception level margin are visible at a glance, making it easy to adjust and maintain.
• With a viewing window (optional)
  With a viewing window that shows the reception level and sensitivity setting value at a glance.
• Achieves a reach of about 100m with a small detection surface of φ27mm
• IP65 equivalent degree of protection
