Manufacturer: Wadeco Corporation

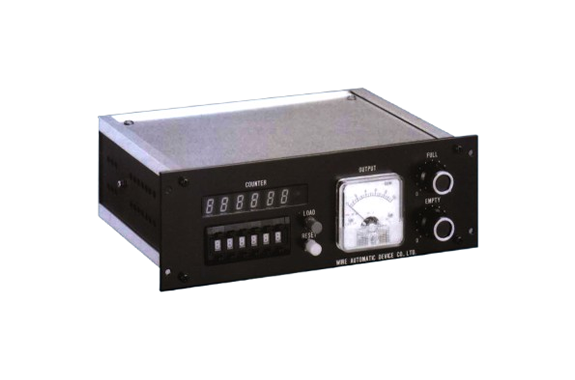

Model: TC-3A

Features

• When two points of empty tension and groove tension are set, the voltage is output proportional to the measured value of the counter between the two points, making tension setting easy and tension control continuous.
• The tension of the counter against any measured value can be checked before operation, and the measured and tension values can be constantly monitored during operation.
• It has an output contact that outputs at a preset value of the counter or “0”. It can be used as a preset counter.
• It is equipped with both power and voltage outputs. The power output can directly control the powder clutch and the like, and the voltage output can control the power regulator and so on.
• You can switch to an external tension setter or connect an external calculator to compensate for inertia when starting or stopping.
• It is equipped with an auxiliary input terminal that inputs the displacement of the Dansa roller or other voltage plasma or minus, and positively or negatively displays the output of the numerical value.
• You can change the number of digits in the counter display.
• It has a built-in 15 V, 50 mA DC sensor power supply and ±a 15 V, 10 mA DC auxiliary power supply.
• With memory by built-in battery.
• The display of unnecessary upper digits is eliminated, and the numerical values can be read directly using the zero-suppress method.
• Small, lightweight and compact.
