Wadeco High-Temperature Microwave Sensor Extension Kit EK Type
Manufacturer: Wadeco Corporation
Model: EK Type
Features
- Molten ash and bricks also penetrate easily.
There are no welding points, and the combination is free. Outstanding performance for detection at high and low temperatures, thick walls.
Specification
| Setting distance | Antenna diameter: φ50 → 40 m, φ65 → 90 m, φ75 → 180 m |
|---|---|
| Antenna section — operating ambient temperature | Ceramic: −50°C to +500°C Teflon: −20°C to +150°C |
| Transmitter/receiver unit — operating ambient temperature | −10°C to +55°C |
Notes
- The setting distances above apply when the transmitter/receiver is the
MWS-ST/SR-□ model. For MWS-CT/CR-□ models, the setting distance is
approximately one third of the values shown. - The EK-type extension kit can also be used with the solid flow sensor
MWS-DP-□ model.

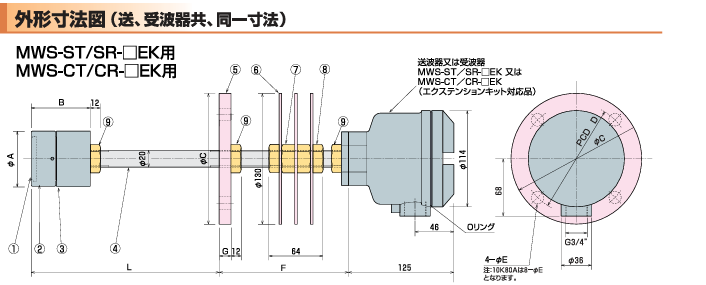

| Flange | A | B | C | D | E | F | G | L |
|---|---|---|---|---|---|---|---|---|
| 5K50A | 50 | 45 | 130 | 105 | 15 | Radiation fin None: 55 With: 145 | 14 | Specified |
| 5K65A | 65 | 70 | 155 | 130 | 15 | 14 | ||
| 5K80A | 75 | 95 | 180 | 145 | 19 | 14 | ||
| 10K50A | 50 | 45 | 155 | 120 | 19 | 16 | ||
| 10K65A | 65 | 70 | 175 | 140 | 19 | 18 | ||
| 10K80A | 75 | 95 | 185 | 150 | 19 | 18 |
