Manufacturer: Wadeco Corporation
Model: MWS-BF-3D

Features

• The 3D surface map and its arbitrary angle profile are measured in approximately 20 seconds per batch.
• The profile of the load immediately after the fall is captured by following the chute, displaying a 3D surface map that shows the fall trajectory with each chute rotation.
• In addition to 3D surface maps, various display functions are provided, including cross-sectional profiles at any angle, descent speed, and received power.
• The product features a compact and simple mechanical scanning mechanism that is easy to maintain, with no dust adhesion on the antenna surface.
• Gas leakage is not a concern.
• The sliding plate, which opens and closes in approximately 7 seconds, protects the profile meter from ultra-hot gases during the atrium.
• The self-diagnostic function detects the amount of deposited dust in the profile meter and indicates when maintenance is required. Water cooling is not included.

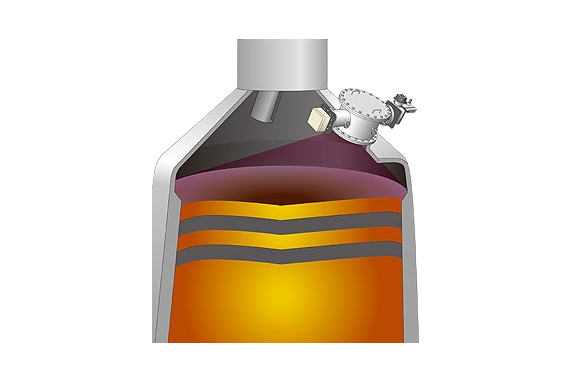

Lanceless Blast Furnace 3D Profile Meter
