WADECO Corporation

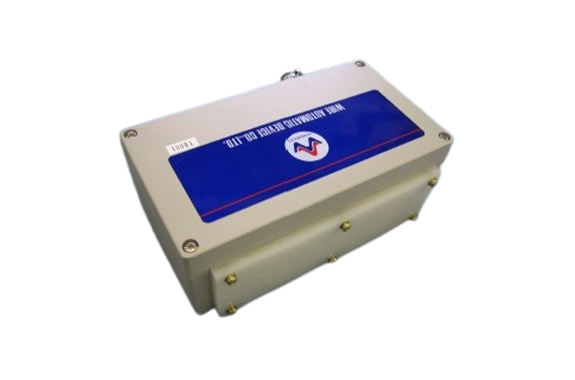

Wadeco Microwave Topped Car Data Transmission System MWS-DT-1
Manufacturer: Wadeco Corporation
Model: MWS-DT-1
Features
- The signal input by RS422 is converted into a microwave signal and transmitted to another data transmission device, and the microwave signal received by the receiver is output via RS422. The signal is used to control the brakes of each vehicle and to unpin the hitch.
- Microwaves are less susceptible to flames, water vapor, suspended dust, dirt, and high-voltage wires, and can communicate more reliably than light and coil methods.
Specification
| format | MWS-DT-1 (Standard RS422) |
|---|---|
| Frequency of use | 24GHz band |
| Transmission distance | Max1.5m |
| Interface (terminal connection) | RS422 or RS232C (optional) |
| Communication Methods | Full Duplex Communication |
| Transmission Speed | 1,200～19,200bps |
| Supply voltage | DC24V±10％ |
| Power consumption | 2W |
