Manufacturer: Wadeco Corporation
Model: MWS-B79RF-B

Features

• License not required
  • No radio station license is required, saving the cost and hassle of applying for a license.
• OK in adverse environments
  • The reflector corresponding to the detection head is attached to the high-temperature part and can be used at high temperatures without a cooling device.
  • Millimeter waves are almost unaffected by temperature, flame, water vapor, airborne dust, and dirt.
• High accuracy, high reliability
  • The 79GHz antenna is compact and has a sharp beam angle, allowing it to be used in narrow spaces.

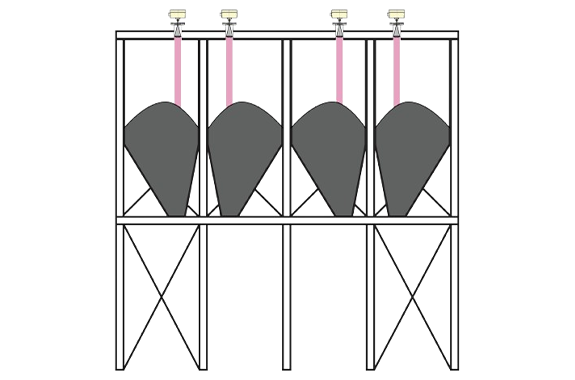

  • It is ideal for detecting granules on steep slopes.
  • ± 5mm accuracy.
  • Since the measurement distance is automatically calibrated at regular intervals, the measurement accuracy is not affected even if the temperature changes or long-term use are not affected.
  • With a filter function to remove fault waves.
• Monitoring of driving status and abnormal conditions with a computer
  • It continuously displays the received signal waveform, FFT spectral waveform, and measurement trajectory, and can also record, playback, and fast forward as needed.
  • You can easily determine the optimal parameter value while simulating using the recording and playback function.
  • It displays and outputs the temperature and alarms (reception level drop, temperature increase in the main unit, version mismatch, communication error).
• Equipped with useful functions
  • You can set any reference point or measurement range.
  • You can set it up on your computer.
  • It is a free power supply with AC90~240V and 50/60Hz.
  • You can communicate with your computer via RS-232C or RS-422.
  • The distance output is 4-20mA output.
• Reduced weight and compactness
  • You can hold it with one hand. The antenna has become even lighter and smaller.
  • The burden of installation work has been reduced.
• Flexible Adaptability
  • Both hardware and software can be changed and improved according to your requirements.
