Wadeco Ranging Microwave Crane Proximity Detection Sensor Micro Robo MWS-CAS-3-P

Manufacturer: Wadeco Corporation
Model: MWS-CAS-3-P

Features

  • No license requiredNo
    radio station license is required, saving the cost and hassle of applying for a license.

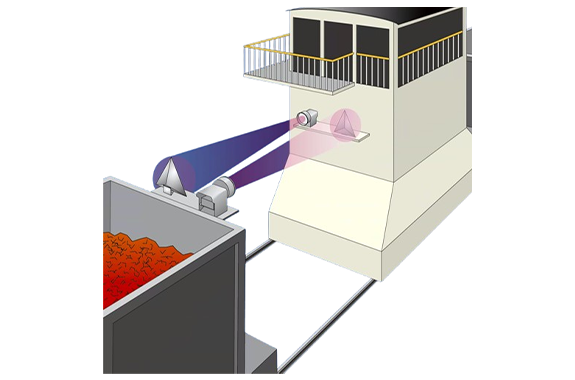

  • It is a ranging type that measures the distance between the two-output
    micro robot and the reflector, so it is easy to adjust the distance, and the crane can be slowed down with the deceleration output and stopped with the stop output.
  • Analog output of measuring distance with
    analog output.
  • OK
    in adverse environments Microwaves can penetrate dirt and layers of deposits on the detection surface, and are almost unaffected by rain, wind, snow, fog, dust, and water vapor.
  • No
    beam axis misalignment The transmitting and receiving beams are conical in shape, making it easy to adjust the beam axis and there is no operation defect due to axis misalignment.
  • You can install a micro robot in close proximity that does not
    interfere with the set.
  • Outdoor
  • Affordable price

Specification

formatMWS-CAS-3-PMWS-CAS-3-PDC
powerAC100~120V or 200~240V ±10%, 50/60Hz
Power consumption10VA
Detection distance1.5m~80m
Frequency and aerial power24GHz band, 10mW or less
