Manufacturer: Wadeco Corporation
Model: MWS-BF-3DV

Features

• The 3D surface map is measured along with its arbitrary angle profile in approximately 20 seconds per batch.

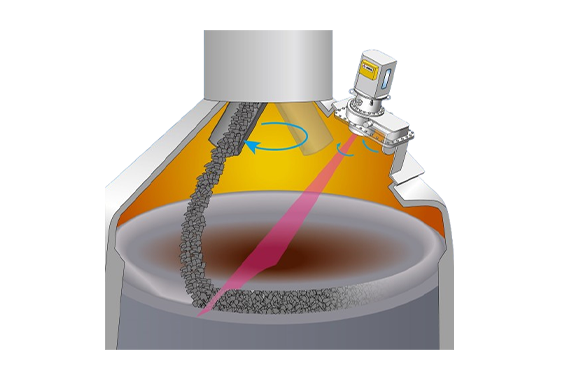

• The profile of the load immediately after the fall is captured by following the chute, displaying a 3D surface map that shows the fall trajectory with each chute rotation.
• In addition to 3D surface maps, various display functions are available, including cross-sectional profiles at any angle, descent speed, and received power.
• The product features a mechanical scanning mechanism that is compact, simple, and easy to maintain, with no dust adhesion on the antenna surface.
• There is no concern about gas leakage.
• The sliding plate, which opens and closes within 7 seconds, protects the profile meter from ultra-hot gases during the atrium.
• The self-diagnostic function detects the amount of deposited dust in the profile meter and signals when maintenance is required.
• Water cooling is not included.

Vertical 3D Profile Meter For Blast Furnace
