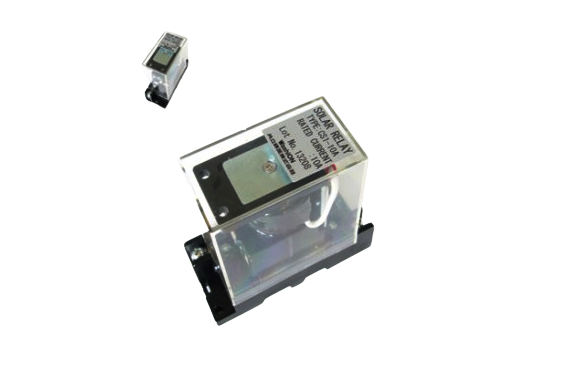

WashiON KYORITSU KEIKI CS1-10A Type Solar Relay

Manufacturer: WashiON KYORITSU KEIKI
Model: CS1-10A Type
Features
- Solar relay to reduce the loss of the backward flow preventing diode in the connection box inphotovoltaic power generation.
- When a more than operating current forward current flows during photovoltaic power generation, it reduces fever energy loss at the time of the diode supply by a relay operating, and doing a backward flow preventing diode.
- When quantity of generation decreases and is less than a release current, a relay returns it.(Less than release current are supply in a diode.)
Specifications
Item | Performance |
Rated insulation voltage | 750VDC |
Rated supplied current | 10A |
Minimum operating current | 3.5A or less |
Release current | More than 1.0A |
Power consumption | 3.6W (10A at the time of supply) |
Life span | More than 250000 times |
Insulation resistance | 100MΩ or by 500VDC megger |
Power frequency withstand voltage | 2500VAC 1min |
Ambient temperature | −25℃ ~ +50℃ |
Relative humidity | 45% ~ 85% |

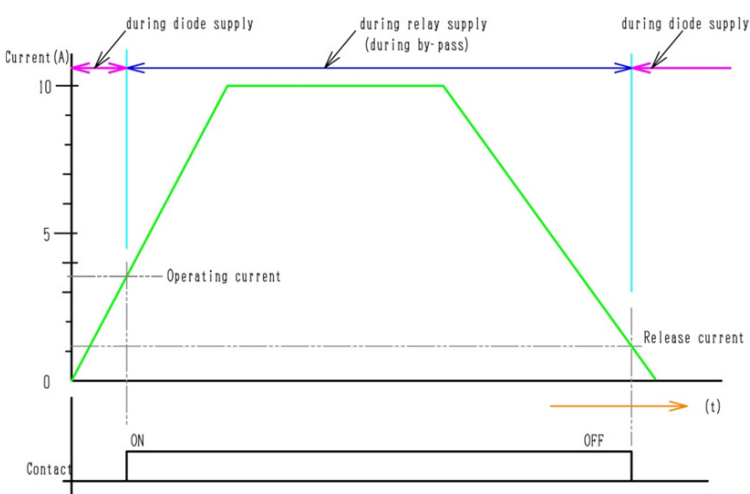

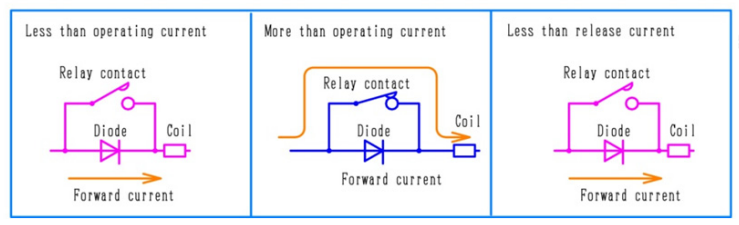

■Movement Explaination

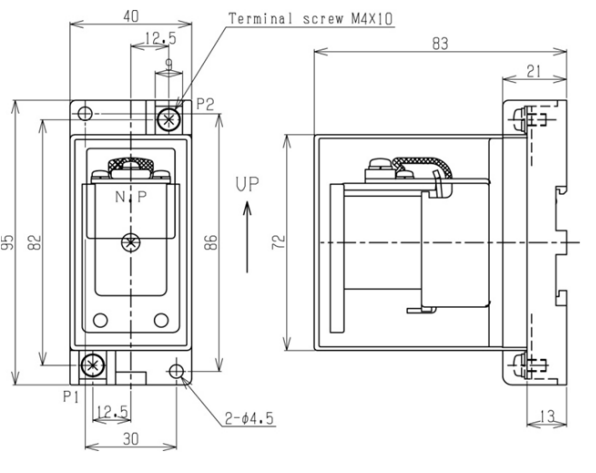

■Outside Drawing
