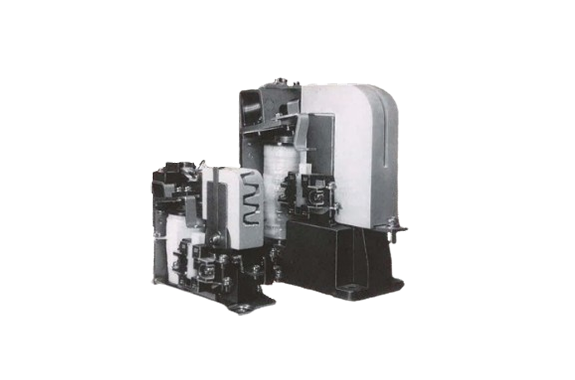

WashiON KYORITSU KEIKI MDM Series DC Contactor

Manufacturer: WashiON KYORITSU KEIKI
Model: MDM Series
Features
- A wide variety of models from which you can select one best suited to your application.
- Environment-friendly contacts free of cadmium and the arc chute made of non-asbestos material.
- Contacts of special silver alloy showing high resistance to wear or fusion.
- Blow-out coil arc-extinguishing system (magnetic arc-extinguishing system) employed.
- Auxiliary contacts of 2a2b provided and twin contact structure assuring stable contact.
Specifications
Rated voltage | 25 type | 50 type | 100 type | 200 type | 400 type | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rated voltage | Insulation | DC250V | DC750V | |||||||||||||||
Operation | DC220V | DC440V | ||||||||||||||||
Main contact arrangement | 1A, 2A | 1B | 1A, 2A | 1B | 1A | 1B | 1A | 1B | 1A | |||||||||
Blow-out coil rated current (capacity) | Continuous | 5A | 25A | 5A | 25A | 5A | 10A | 25A | 50A | 5A | 10A | 25A | 50A | 100A | 100A | 200 | 200 | 400 |
1H | 6A | 30A | 6A | 30A | 6A | 12A | 30A | 60A | 6A | 12A | 30A | 60A | 120A | 120A | 240 | 240 | 480 | |
Make/Break current capacity (L/R) | 15ms | 20A | 100A | – | – | 20A | 40A | 100A | 200A | – | – | – | – | 400A | – | 800 | – | 1600 |
1ms | – | – | 5A | 25A | – | – | – | – | 5A | 10A | 25A | 50A | – | 100A | – | 200 | – | |
Coil resistance (initial state) | 100 | 555 | 500 | 400 | 285 | 312 | ||||||||||||
110 | 672 | 605 | 484 | 345 | 378 | |||||||||||||
200 | 2222 | 2000 | 1600 | 1143 | 1250 | |||||||||||||
220 | 2688 | 2420 | 1936 | 1382 | 1512 | |||||||||||||
Coil resistance (initial state) | 18W | 20W | 25W | 35W | 32W | |||||||||||||
Coil resistance (initial state) | 100 | 1.2 | 2.5 | 3.3 | 7.0 | 12.0 | ||||||||||||
100 | 1.4 | 3.3 | – | – | – | |||||||||||||
100 | 1.3 | 2.6 | 3.5 | 7.2 | – | |||||||||||||
Performance | Standard | JEM1038 | ||||||||||||||||
Switching frequency | No. 1 ( 1200 times/ hour) | |||||||||||||||||
Mechanical life | Calss 1 ( 5 million times) | |||||||||||||||||
Electrical life | Class 2 ( 250,000 times) | |||||||||||||||||
Insulation resistance | 5MΩ or above (DC500V megger) | 5MΩ or above (DC1000V megger) | ||||||||||||||||
Withstand voltage (1 min,50/60 Hz) | Main Circuit | AC2000V | AC3000V | |||||||||||||||
Control Circuit | AC1500V | |||||||||||||||||
Auxiliary contact | Contact arrangement | 1a1b, one unit | ||||||||||||||||
Performance | L/R =50ms DC110V1.0A DC220V0.5A |
Overall Dimensions
Notes:
- Install the DC contactor as indicated below. (Attach the mounting base on a vertical surface, and install the contactor with the arc-extinguishing part up.)
- The MDM series contactor can be mounted directly on a metallic surface, but it is advised that it is separated from the metallic body as far as practicable.
- Be sure to provide sufficient arc space.
- Coil terminals and auxiliary contact terminals are all M4.
- Tighten up the specified number of screws.

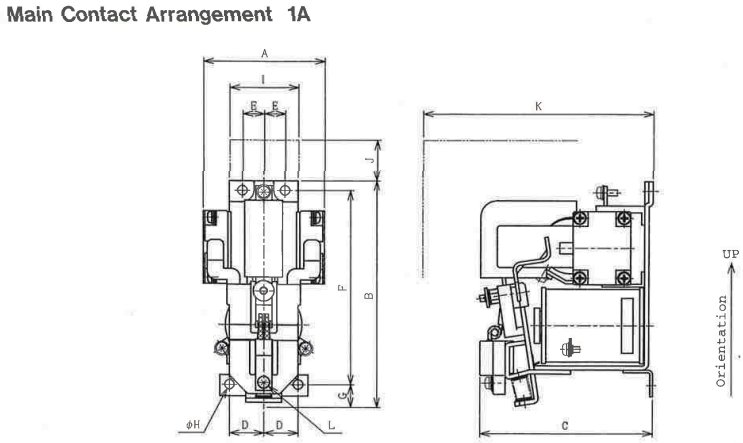

Dimension | Overall | Mounting | Arc Spacing | Terminal diam | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | A | B | C | D | E | F | G | H | I | J | K | L |
MDM25-A | 74 | 140 | 105 | 21 | 13 | 120 | 14 | 6 | 42 | 25 | 140 | M4 |
MDM50-A | 90 | 194 | 180 | 42 | 22 | 150 | 15 | 7 | 64 | 81 | 270 | M6 |
MDM100-A | 90 | 200 | 190 | 42 | 22 | 150 | 22 | 7 | 64 | 175 | 340 | M8 |
MDM200-A | 125 | 270 | 220 | 25 | 38 | 200 | 12 | 9 | 100 | 180 | 365 | M10 |
MDM400-A | 135 | 320 | 235 | 50 | 50 | 200 | 13 | 9 | 125 | 180 | 420 | M12 |

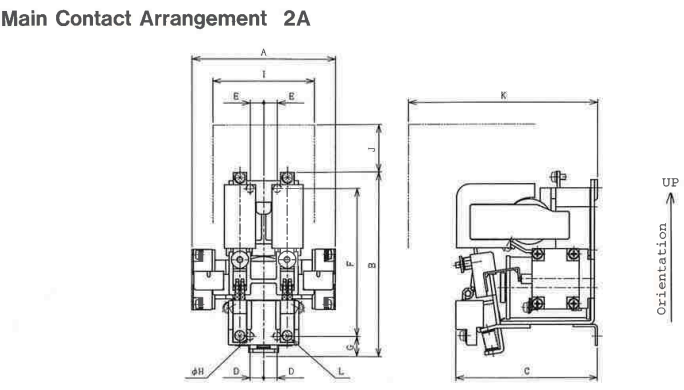

Dimension | Overall | Mounting | Arc Spacing | Terminal diam | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | A | B | C | D | E | F | G | H | I | J | K | L |
MDM25-D | 106 | 138 | 105 | 10 | 0 | 110 | 16 | 6 | 75 | 35 | 140 | M4 |
MDM50-D | 145 | 189 | 180 | 42 | 22 | 150 | 10 | 7 | 145 | 81 | 270 | M6 |

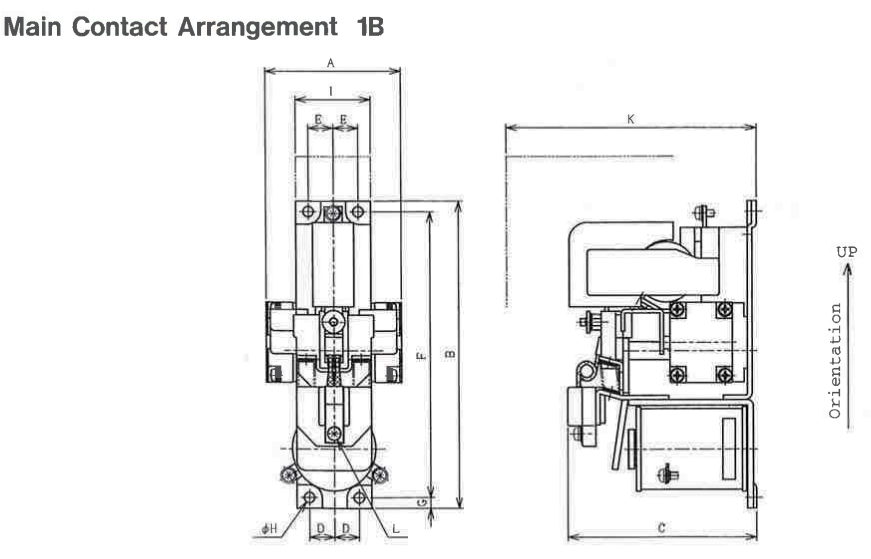

Dimension | Overall | Mounting | Arc Spacing | Terminal diam | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Model | A | B | C | D | E | F | G | H | I | J | K | L |
MDM25-B | 76 | 172 | 106 | 14 | 14 | 160 | 6 | 6 | 42 | 25 | 140 | M4 |
MDM50-B | 95 | 200 | 180 | 42 | 22 | 150 | 15 | 7 | 64 | 81 | 270 | M6 |
MDM100-B | 95 | 210 | 190 | 42 | 22 | 150 | 32 | 7 | 64 | 175 | 340 | M8 |
MDM200-B | 125 | 318 | 220 | 25 | 38 | 250 | 12 | 9 | 100 | 180 | 365 | M10 |
