WashiON KYORITSU KEIKI CO.

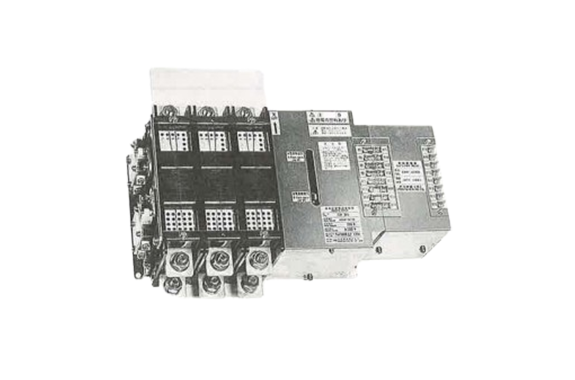

WashiON KYORITSU KEIKI SSK Series Auxilliary Relay Panel (EAP) Type Automatic Transfer Switches
Manufacture: WashiON KYORITSU KEIKI
Model: SSK series
Features
- Auxiliary relay panel available for 30A to 1600A only.
- Mounted directly on the switch body.
Specifications
| Rated voltage | 250VAC | ||
| Rated current | 30A | ||
| Control current | |||
| 100VDC | 0.08A | ||
| 100VAC | 0.1A | ||
| 200VAC | 0.5A | ||
| Coil insulation class | B class (continuous) | ||
| Withstand Voltage | Main circuit | 2500V AC 1 minute (50/60Hz) | |
| Control circuit | 2000V AC 1 minute (50/60Hz) | ||

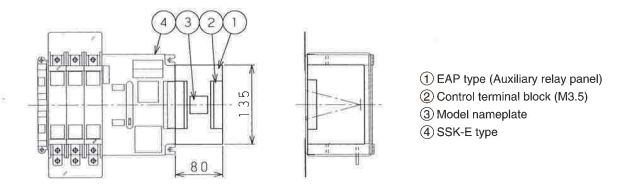

Overall Dimension
