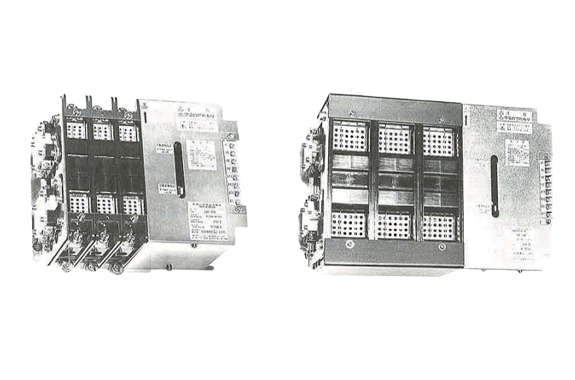

WashiON KYORITSU KEIKI SSK Series E Type Automatic Transfer Switches

Manufacturer: WashiON KYORITSU KEIKI
Model: SSK series

Features

Type
Type			203 E	206 E	21 E	21.5 E	22 E	23 E	24 E
Rated Voltage			250VAC/140VDC
Rated current			30A	60A	100A	150A	200A	300A	400A
Throw			Double throw (D), Single throw (S)
Connection			Front (F), Back (B)
Weight Front (Back)	2 P		4.8 Kg (4.6 Kg)		6.9 Kg (6.7 Kg)		8.4Kg (8.0 Kg)		15.2 Kg (14.6 Kg)
	3 P		5.3 Kg (5.1 Kg)		7.8Kg (7.6 Kg)		10.1Kg (9.7 Kg)		18.4Kg (17.8 Kg)
	4 P		5.8 Kg (5.6 Kg)		8.7 Kg (8.5 Kg)		11.8Kg (11.4 Kg)		21.6 Kg (21.0 Kg)
Control current	2 P 3 P	100VDC	2.5 A		3.5 A		6.0 A		8.3 A
		100VAC	2.9 A		3.9 A		6.4 A		9.8 A
		200VAC	1.5 A		2.0 A		3.3 A		5.4 A
	4 P	100VDC	3.2 A		6.0 A		8.6 A		12.1 A
		100VAC	3.5 A		6.4 A		10.2 A		14.1 A
		200VAC	1.7 A		3.3 A		5.1 A		6.8 A
Coil insulation class			A class (short time rating)
Withstand Voltage	Main circuit		2500V AC, one minute (50/60 Hz)
Withstand Voltage	Control circuit		2000V AC, one minute (50/60 Hz)
Short time current capacity (fsec during conduction)			2 kA		5 kA		10 kA		12 kA
Short peak current			5 kA		12 kA		25 kA		30 kA
Make and break capacity			AC 3 class (10le make, 8le break Cos φ=0.35) DC 1 class (1.1le make, 1.1le break L/R=1ms)
Life			Class 4 (mechanical life: 250,000 times, electrical life: 50,000 times)
Switching frequency			No. 4 (150 times/hr)
Switching characteristics (at rated voltage)	Opening time		0.02 sec		0.022 sec		0.025 sec		0.03 sec
Switching characteristics (at rated voltage)	Switching time		0.05 sec		0.06 sec		0.07 sec		0.09 sec
Auxiliary control make & break capacity			Max. 250VAC 15A, 110VDC 5A, Min. 24VDC 0.1A

[*1] Weight represents thst of Double throw (D), Front (F) and Back (B) type.
[*2] Even with the back (B) connection type, front wiring is to be performed for the control circuit and auxilliary circuit.
[*3] Opening time is the time when the contact is not in the either make or break position.
Switching time is the time from control signal ON to contact making

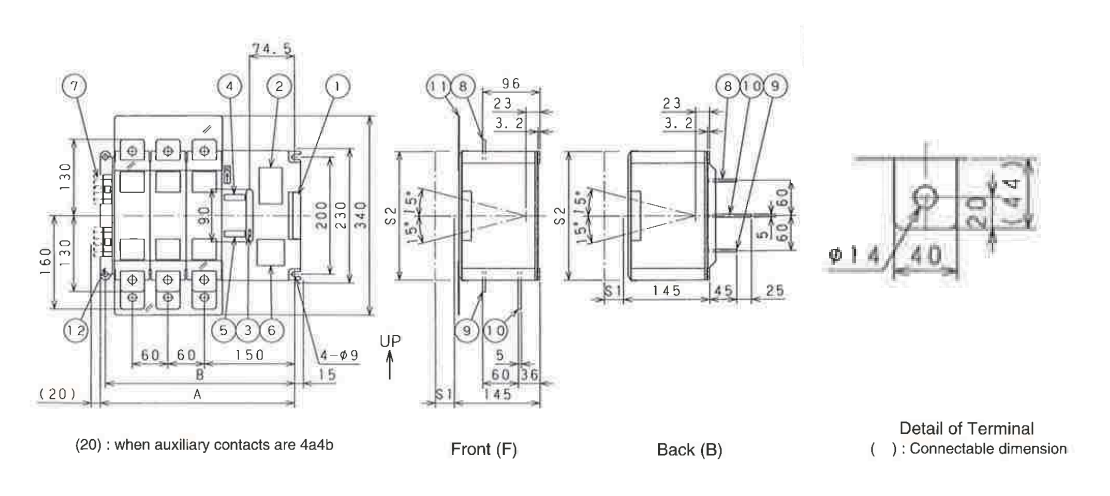

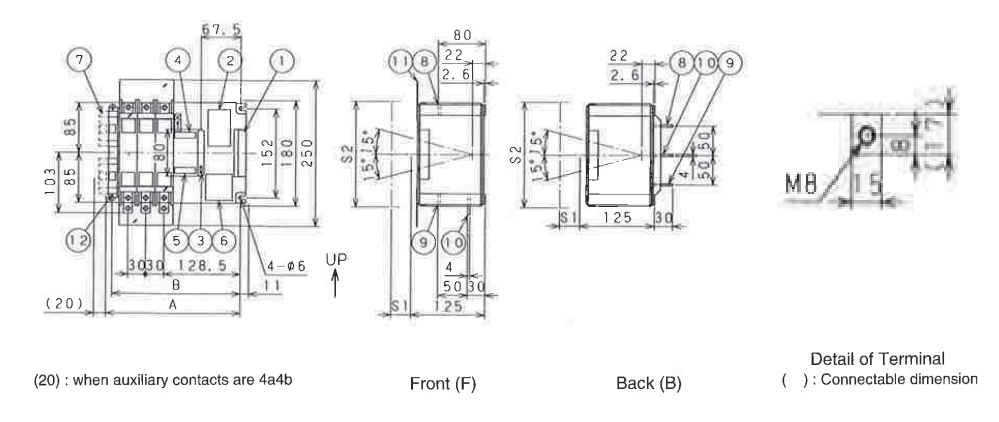

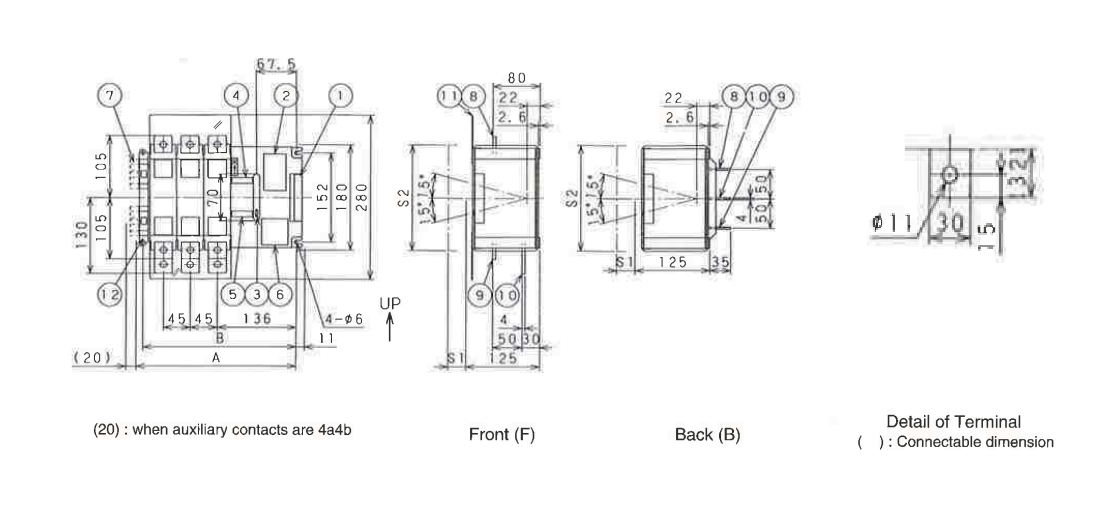

Dimension	A	B	Arc space
Poles	A	B	S 1	S 2
2 P	190	160	20	160
3 P	215	185
4 P	240	210

Dimension	A	B	Arc space
Poles	A	B	S 1	S 2
2 P	209	185	30	180
3 P	239	215
4 P	269	245

Dimension	A	B	Arc space
Poles	A	B	S 1	S 2
2 P	239	215	30	180
3 P	284	260
4 P	329	305

Dimension	A	B	Arc space
Poles	A	B	S 1	S 2
2 P	280	255	30	220
3 P	340	315
4 P	400	375

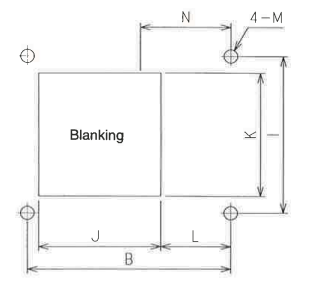

Type		203E 206E	21E 21.5E	22E 23E	24E
B	2P	160	185	215	255
	3P	185	215	260	315
	4P	210	245	305	375
J	2P	75	75	105	135
	3P	100	105	150	195
	4P	125	135	195	255
I		150	152	152	200
K		140	140	150	200
L		75	100	100	110
M		∅ 6	∅ 6	∅ 6	∅ 9
N		107	128.5	136	150
