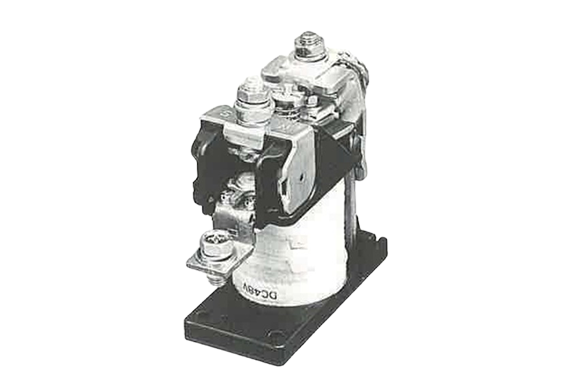

Washion Kyoritz Keiki CM16 Type DC Contactor

Manufacturer: Washion Kyoritz Keiki
Model: CM16 Type
Features
- Firstly, supports forward and reverse switching of DC motors.
- Secondly, allows precise speed control for efficient motor operation.
- Moreover, ideal for battery-powered vehicles such as forklifts.
- In addition, suitable for lift pallet vehicles and fixed platform trucks.
Specifications
Main contact rated voltage | DC 72V | |||||
Main contact rated current | 160A continuous | |||||
Main contact arrangement | 1A | 1T | ||||
Main contact capacity | Condition | Making | Breaking | Time constant | No. of times | |
Make & break capacity | 1950A | 1985A | L/R = 15 ms | 125 times | ||
Rated operating current ※1 | 650A | 160A | L/R = 10 ms | 500,000 times | ||
Switching frequency | 1200 times/hour | |||||
Coil | Voltage | DC 12V | DC 24V | DC 48V | DC 72V | |
Continuous 8H | Current | 2.28 A | 1.16A | 0.58 A | 0.39 A | |
Resistance | 5.27 Ω | 20.3 Ω | 81.0 Ω | 181.0 Ω | ||
Power consumption | 28 W | |||||
Chopper f=1 msec 50%ED | Current | 2.26A [4.53A] | 1.13A [2.26A] | 0.56A [1.13A] | 0.38A [0.76A] | |
Resistance | 2.65 Ω | 10.6 Ω | 42.6 Ω | 94.8 Ω | ||
Power consumption | 13.5W (for chopper control) / 5W (for continuous conduction) | |||||
Insulation class | B class | |||||
Min. pickup voltage | 70% or below of rated voltage (hot coil) | |||||
Release voltage | 5% to 30% of rated voltage | |||||
Insulation resistance | 5MΩ or above (DC500V megger) | |||||
Withstand voltage | AC 1500V 50/60Hz One minute | |||||
Ambient temperature | −20°C ~ +60°C (no condensation) | |||||
Relative humidity | 45% ~ 85% RH | |||||
Vibration resistance (X, Y, Z directions) | 6G in excited state | 4G in non-excited state | ||||
Shock resistance (X, Y, Z directions) | 8G in excited state | 5G in non-excited state | ||||
Mechanical life | 5 million times | |||||
Electrical life | 500,000 times (when used under condition of *1) | |||||
Weight | Coil continuous specification 1.2 kg, Coil chopper specification 0.9 kg |
- [*1]The making and breaking current capacities apply to contact A of all models, and the electrical life to contact A for load switching.
- [*2]Beware that contact B is capable of conducting only and not breaking.
- [*3]The current and resistance values of the coil represent those at an ambient temperature of +20°C, and the tolerance on them is ±10%.
- [*4]The minimum pickup voltage represents that at an ambient temperature of +60°C and hot coil start.

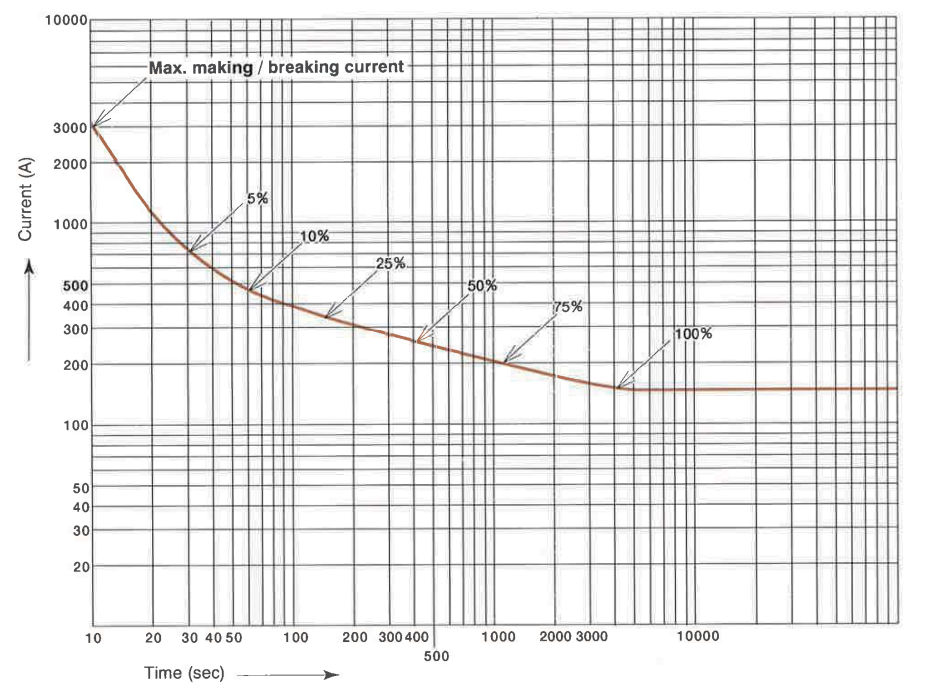

■Relationship between Current, Max.On Time and Duty Cycle
Duty cycle | 5% ED | 10% ED | 25% ED | 50% ED | 75% ED | 100% ED |
Current | 700 A | 450 A | 350 A | 270 A | 200 A | 160 A |
Max. ON time | 30 sec | 60 sec | 160 sec | 420 sec | 1020 sec | Continuous |
OFF time | 570 sec | 540 sec | 480 sec | 420 sec | 340 sec | — |

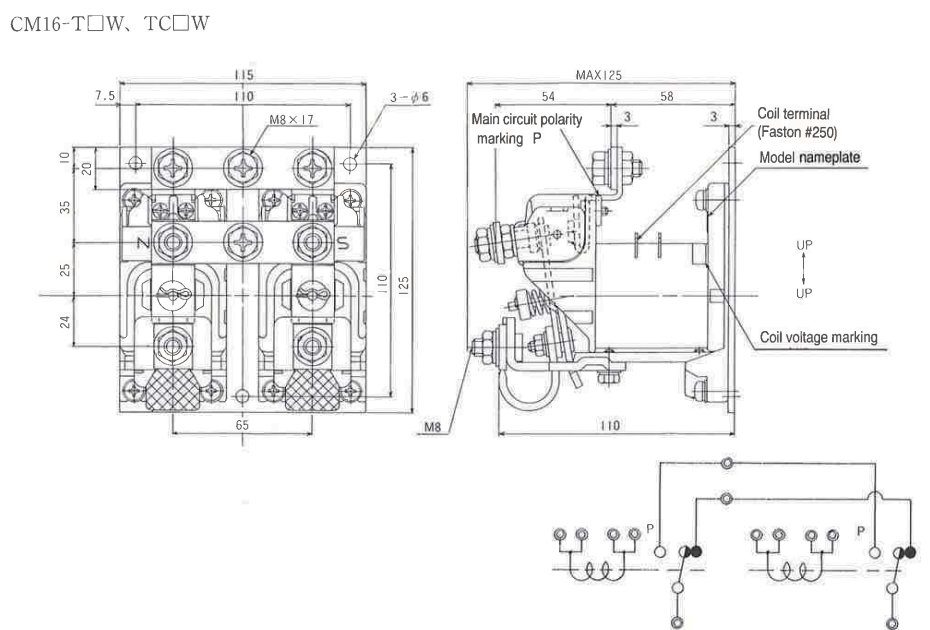

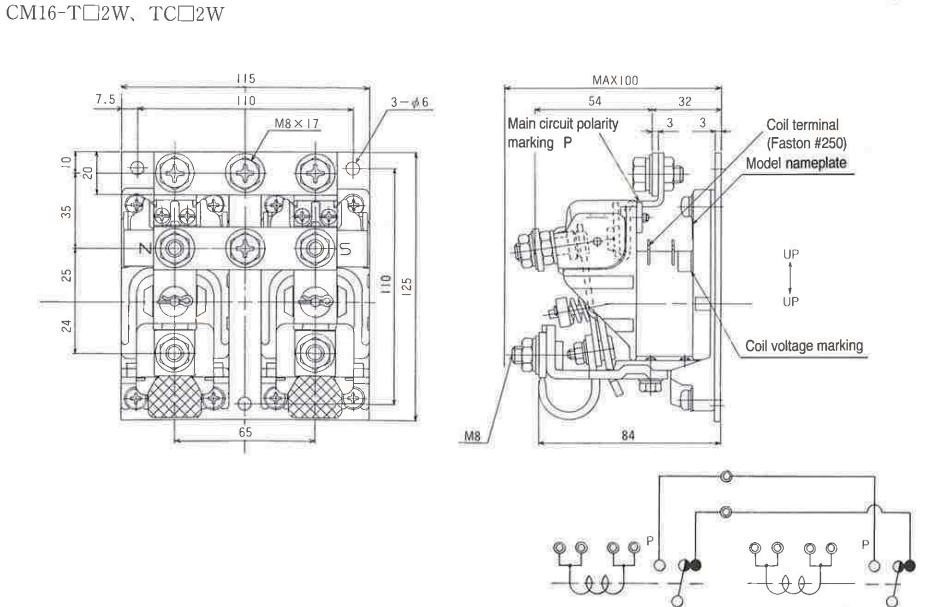

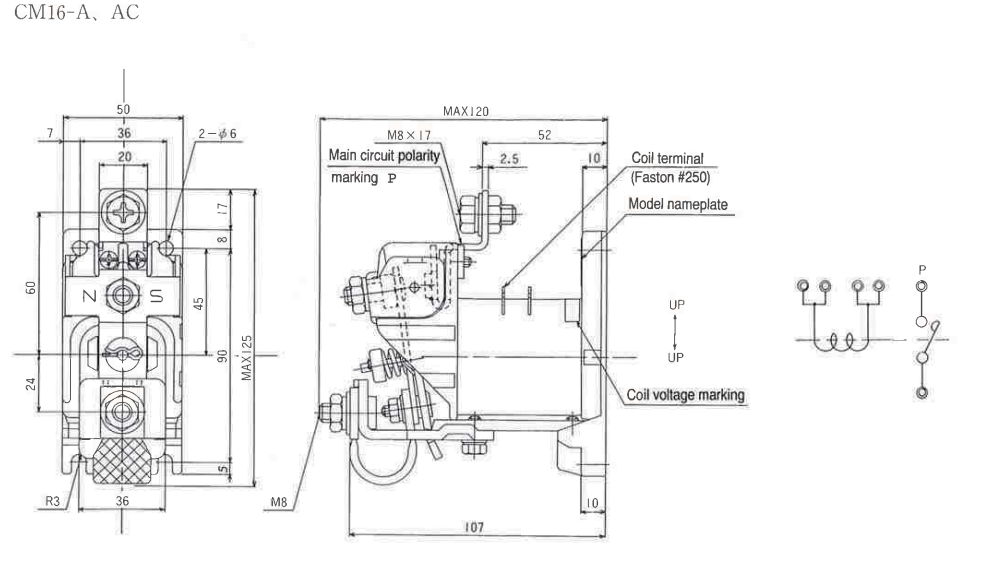

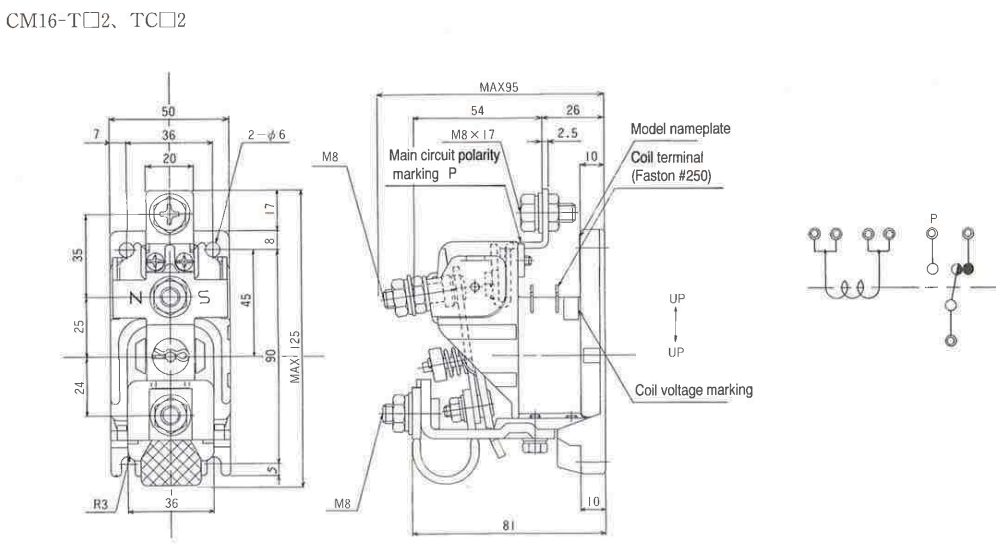

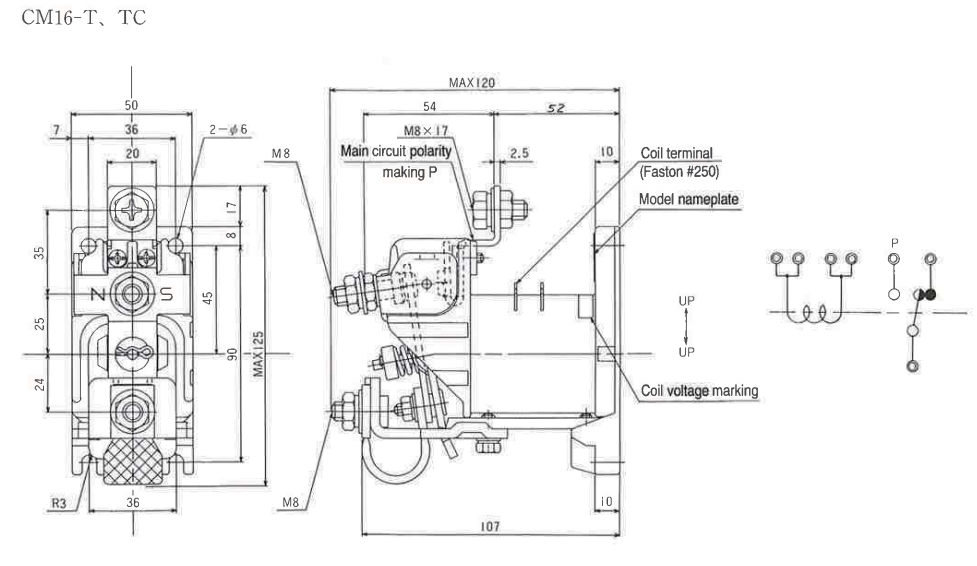

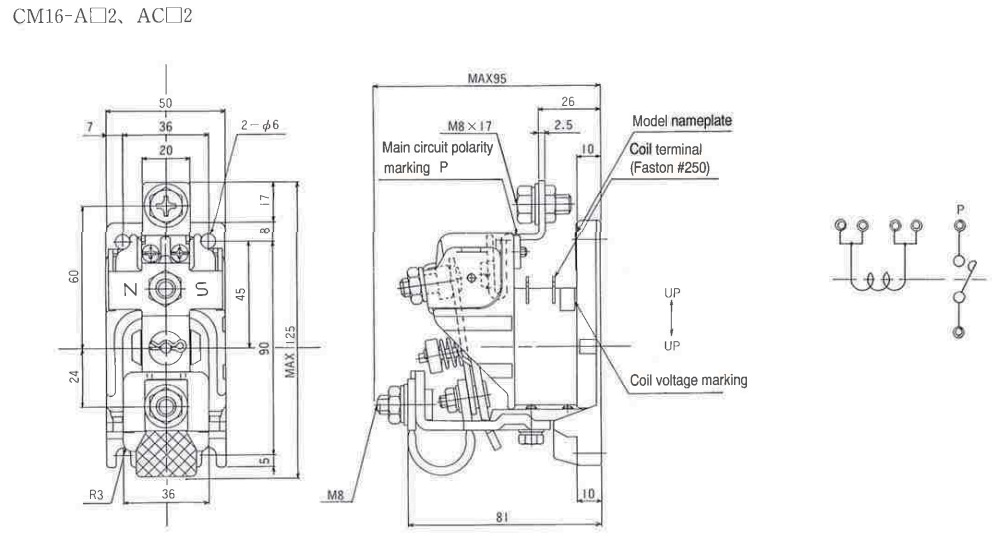

Overall Dimensions
Notes:
- [*1]Use 90 to 110 kg·cm as the tightening torque of the main circuit terminal (M8).
- [*2]Connect the positive pole (+) to the terminal marked with the main circuit polarity marking P.
(The contactor structure is such that arc is led out front by built-in magnet.) - [*3]Install the DC contactor with the UP side up.
- [*4]Provide a space of 10 mm or more between contactors when two or more
