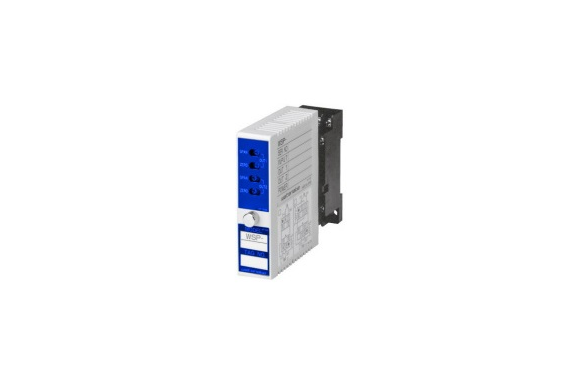

Watanabe WSP-PTEW 2-output PT converter (true RMS) – Signal Converter
Made in Japan
Manufacturer: Watanabe Electric Industry Co. Ltd
Model: WSP-PTEW
A converter that outputs a DC signal proportional to an AC voltage signal (2 outputs)
Features
- High reliability for distorted waves with true RMS calculation method
- Small plug-in type for easy maintenance
- Zero/span adjustment trimmer can be adjusted individually for 1st output and 2nd output
Specifications
| input signal | AC voltage (true rms value) |
|---|---|
| output signal | DC voltage/DC current (2 outputs) |
| power supply | AC90-264V DC10.8-26.4V DC90-121V |
| tolerance | ±0.2%fs |
| Response speed (0→90%) | 500ms |
| Zero/span adjustment | ±5%fs (1st output, 2nd output can be adjusted individually) |
| Withstand voltage | AC2000V |
| mass (weight) | about 150g |
| External dimensions (HWD) | 84×29.5×106.5mm |
| Operating temperature and humidity | -5~+55℃ 90%RH or less |
