Yamato Electric AYDC Series Non-Waterproof Cannon Plug Connecting Cable Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: AYDC Series

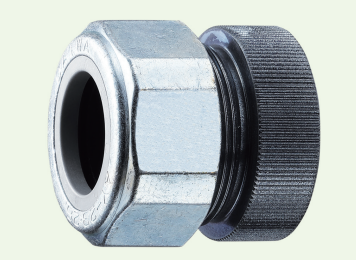

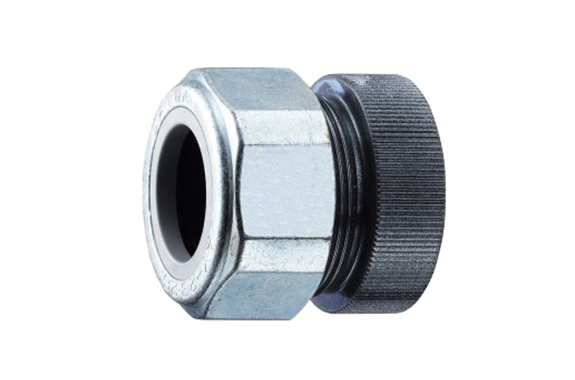

Non-Waterproof Cannon Plug Connecting Cable Connector AYDC
- This is a connector used to connect a non-waterproof cannon plug to a cable.
- Please note: The American Unified Thread differs between waterproof and non-waterproof cannon plugs.
- For connecting a waterproof cannon plug, please use the YSO (P.71).
- Please inquire when connecting a waterproof cannon plug with an endbell.

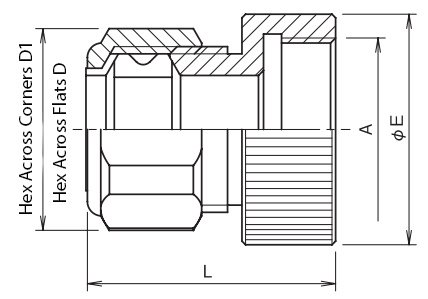

Unit: mm
| Designation | Code | |||||||
|---|---|---|---|---|---|---|---|---|
| Cable O.D. Range φ | American Unified Thread A | Across Flats D | Across Corners D1 | E | Unfastened Length L | Mass (g) | ||
| AYDC- 12S- 5~8 | φ 4 ~ 8.3 | 5/8 -24UNEF-2B | 23 | 25 | 22 | 36 | 53 | |
| 14S- 9~11 | φ 7 ~ 11.3 | 3/4 -20UNEF-2B | 26 | 53 | ||||
| 16S- 5~8 | φ 4 ~ 8.3 | 7/8 -20UNEF-2B | 29 | 34 | 66 | |||
| 16S- 9~11 | φ 7 ~ 11.3 | 29 | 65 | |||||
| 18- 12~14 | φ 10 ~ 14.5 | 1 -20UNEF-2B | 26 | 28 | 32 | 74 | ||
| 20 (22)-12~14 | φ 10 ~ 14.5 | 1 3/16-18UNEF-2B | 36 | 81 | ||||
| 24 (28)-15~17 | φ 13 ~ 17.5 | 1 7/16-18UNEF-2B | 30 | 32 | 42 | 35 | 102 | |
| -23 | φ 19 ~ 23 | 42 | 41 | 147 | ||||
| 32 -15~17 | φ 13 ~ 17.5 | 1 3/4 -18UNS -2B | 30 | 32 | 50 | 37 | 132 | |
| Material | Body: Brass Rod | |||||||
| Notes | Partially made-to-order product. | |||||||
(Example) AYDC – 18 – 12 ~ 14
AYDC – 18 : Cannon Plug Shell Designation
12 ~ 14 : Cable Designation
