Yamato Electric AYL Series 90° Angle Connector for Multi-Core Cables
Manufacturer: Yamato Electric Co., Ltd.
Model: AYL Series

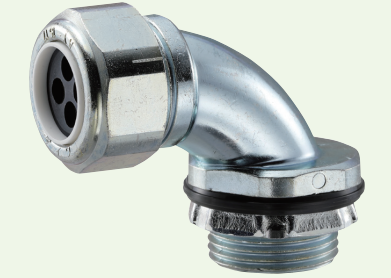

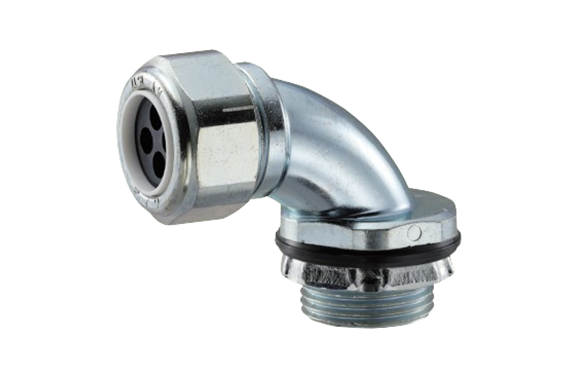

90° Angle Connector for Multi-Core Cables AYL
- This is a angle cable connector that securely grips multiple cables (2 to 4 cores) and allows them to be pulled into boxes and similar enclosures.
- It comes with a seal washer attached to the connection point with boxes and similar enclosures.
- AYL’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.
Accommodated Cable Outer Diameter 2 to 10 2 to 4 cores
Unit: mm
| Nominal Size | Code | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

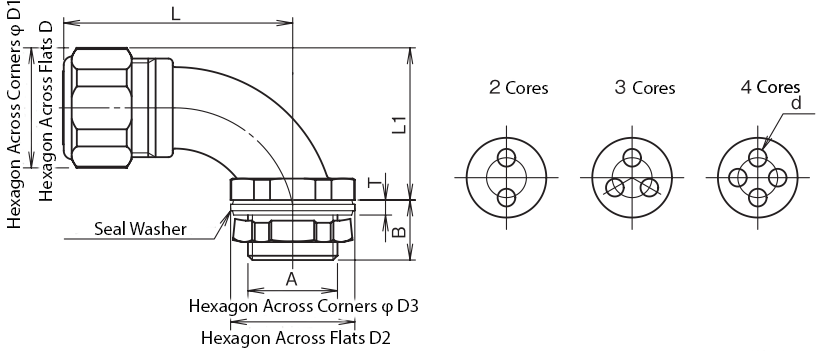

| Applicable Cable | Armor Screw A | B | T | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | L! | Mass (g) | Qty/Box | ||||||
| Outer Dia φd | Cores | Conduit Pipe Thread Nominal Size | Pipe Parallel Thread Nominal Size | Recommended Mounting Hole Diameter | |||||||||||||
| AYL-14-2-030 | 2 〜 3 | 2 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 53 | 35.5 | 94 | 16 | ||
| AYL-14-2-040 | 3 〜 4 | ||||||||||||||||
| AYL-14-2-050 | 4 〜 5 | 93 | |||||||||||||||
| AYL-14-2-060 | 5 〜 6 | ||||||||||||||||
| AYL-20-2-070 | 6 〜 7 | CTG 22 | G 3/4 | 27 | 17 | 35 | 38 | 35 | 38 | 61 | 51 | 247 | 4 | ||||
| AYL-20-2-080 | 7 〜 8 | 246 | |||||||||||||||
| AYL-20-2-090 | 8 〜 9 | ||||||||||||||||
| AYL-26-2-100 | 9 〜 10 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 66 | 57 | 366 | ||||
| AYL-14-3-030 | 2 〜 3 | 3 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 53 | 35.5 | 94 | 16 | ||
| AYL-14-3-040 | 3 〜 4 | ||||||||||||||||
| AYL-14-3-050 | 4 〜 5 | 93 | |||||||||||||||
| AYL-20-3-060 | 5 〜 6 | CTG 22 | G 3/4 | 27 | 17 | 35 | 38 | 35 | 38 | 61 | 51 | 247 | 4 | ||||
| AYL-20-3-070 | 6 〜 7 | 246 | |||||||||||||||
| AYL-20-3-080 | 7 〜 8 | ||||||||||||||||
| AYL-26-3-090 | 8 〜 9 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 66 | 57 | 365 | ||||
| AYL-26-3-100 | 9 〜 10 | ||||||||||||||||
| AYL-14-4-030 | 2 〜 3 | 4 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 53 | 35.5 | 94 | 16 | ||
| AYL-14-4-040 | 3 〜 4 | 93 | |||||||||||||||
| AYL-20-4-050 | 4 〜 5 | CTG 22 | G 3/4 | 27 | 17 | 35 | 38 | 35 | 38 | 61 | 51 | 247 | 4 | ||||
| AYL-20-4-060 | 5 〜 6 | 246 | |||||||||||||||
| AYL-20-4-070 | 6 〜 7 | ||||||||||||||||
| AYL-20-4-080 | 7 〜 8 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 66 | 57 | 365 | ||||
| AYL-26-4-090 | 8 〜 9 | ||||||||||||||||
| Material | Body: AYL2-14 – Zinc Alloy Die-Cast, AYL20-26 – Black Heart Malleable Cast Iron | ||||||||||||||||
| Remarks | |||||||||||||||||
