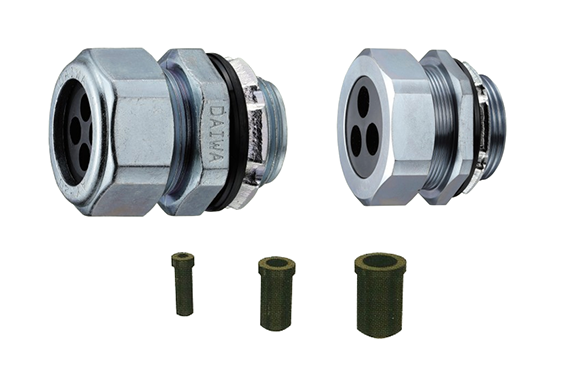

Yamato Electric AYS/ YS Series Multi-Core Cable Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: AYS/ YS Series
Multi-Core Cable Connector AYS YS
- This is a cable connector that securely grips multiple cables (2 to 4 cores) and allows them to be pulled into boxes and similar enclosures.
- It comes with a seal washer attached to the connection point with boxes and similar enclosures.
- AYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

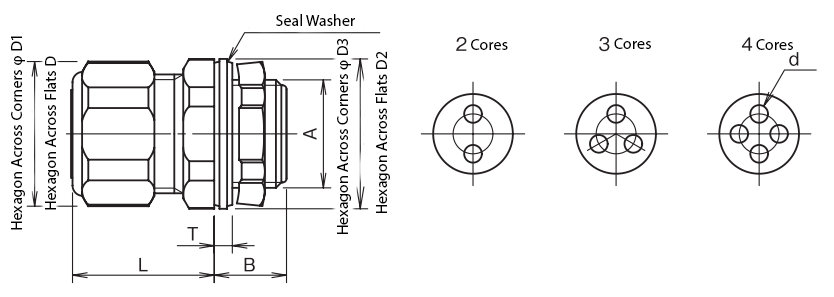

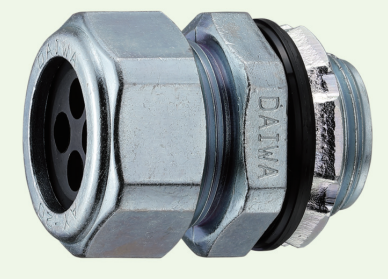

AYS Accommodated Cable Outer Diameter 2 to 10 2 to 4 cores
Unit: mm
| Nominal Size | Code | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Cable | Armor Screw A | B | T | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | Mass (g) | Qty/Box | |||||
| Outer Dia φd | Cores | Conduit Pipe Thread Nominal Size | Pipe Parallel Thread Nominal Size | Recommended Mounting Hole Diameter | |||||||||||
| AYS-14-2-030 | 2 〜 3 | 2 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 27 | 68 | 25 | |
| AYS-14-2-040 | 3 〜 4 | ||||||||||||||
| AYS-14-2-050 | 4 〜 5 | ||||||||||||||
| AYS-14-2-060 | 5 〜 6 | ||||||||||||||
| AYS-20-2-070 | 6 〜 7 | CTG 22 | G 3/4 | 27 | 17 | 35 | 38 | 35 | 38 | 33 | 134 | 16 | |||
| AYS-20-2-080 | 7 〜 8 | 133 | |||||||||||||
| AYS-20-2-090 | 8 〜 9 | ||||||||||||||
| AYS-26-2-100 | 9 〜 10 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 37 | 202 | 8 | ||
| AYS-14-3-030 | 2 〜 3 | 3 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 27 | 68 | 25 | |
| AYS-14-3-040 | 3 〜 4 | ||||||||||||||
| AYS-14-3-050 | 4 〜 5 | 67 | |||||||||||||
| AYS-20-3-060 | 5 〜 6 | CTG 22 | G 3/4 | 27 | 17 | 35 | 38 | 35 | 38 | 33 | 133 | 16 | |||
| AYS-20-3-070 | 6 〜 7 | ||||||||||||||
| AYS-20-3-080 | 7 〜 8 | 132 | |||||||||||||
| AYS-26-3-090 | 8 〜 9 | CTG 28 | G 1 | 34 | 18 | 4 | 41 | 44 | 44 | 47 | 37 | 202 | 8 | ||
| AYS-26-3-100 | 9 〜 10 | 201 | |||||||||||||
| AYS-14-4-030 | 2 〜 3 | 4 | CTG 16 | G 1/2 | 21 | 14 | 3.5 | 26 | 28 | 27 | 29 | 27 | 68 | 25 | |
| AYS-14-4-040 | 3 〜 4 | ||||||||||||||
| AYS-20-4-050 | 4 〜 5 | CTG 22 | G 3/4 | 27 | 17 | 3.5 | 67 | ||||||||
| AYS-20-4-060 | 5 〜 6 | 35 | 38 | 35 | 38 | 33 | 133 | 16 | |||||||
| AYS-20-4-070 | 6 〜 7 | ||||||||||||||
| AYS-26-4-080 | 7 〜 8 | CTG 28 | G 1 | 34 | 18 | 4 | 132 | ||||||||
| AYS-26-4-090 | 8 〜 9 | 41 | 44 | 44 | 47 | 37 | 201 | 8 | |||||||
| Material | Body: Zinc Alloy Die-Cast | ||||||||||||||
| Remarks | |||||||||||||||

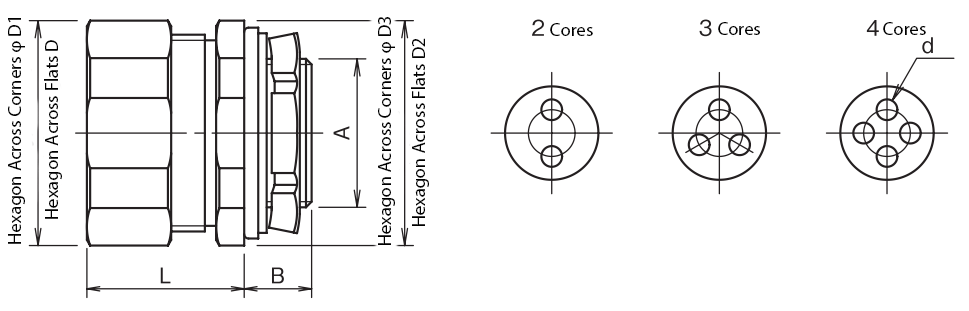

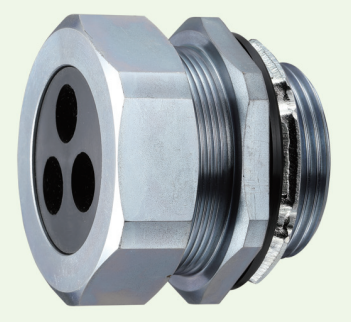

YS Accommodated Cable Outer Diameter 10 to 17.5 2 to 4 cores
Unit: mm
| Nominal Size | Code | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable Cable | Armor Screw A | B | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Ring Length L | Mass (g) | Qty/Box | ||||||
| Outer Dia φd | Cores | Conduit Pipe Thread Nominal Size | Pipe Parallel Thread Nominal Size | Recommended Mounting Hole Diameter | |||||||||||
| YS-30-3-110 | 10〜11 | 3 | CTG 28 | G 1 | 34 | 18 | 46 | 50 | 46 | 50 | 28 | 247 | 7 | ||
| YS-38-2-120 | 10〜12 | 2 | 382 | ||||||||||||
| YS-38-3-120 | 3 | CTG 36 | G 1 1/4 | 42 | 18 | 55 | 60 | 55 | 60 | 33 | 379 | 5 | |||
| YS-38-4-120 | 4 | 376 | |||||||||||||
| YS-48-3-150 | 13〜15 | 3 | CTG 42 | G 1 1/2 | 48 | 23 | 65 | 71 | 65 | 71 | 38 | 558 | 4 | ||
| YS-48-4-150 | 4 | 546 | |||||||||||||
| YS-58-3-175 | 16.5〜17.5 | 3 | CTG 54 | G 2 | 60 | 26 | 75 | 82 | 75 | 82 | 39 | 740 | 2 | ||
| YS-58-4-175 | 4 | 728 | |||||||||||||
| Material | Body: Brass Rod | ||||||||||||||
| Remarks | |||||||||||||||
The method for displaying the Nominal Size (Designation) is as follows.
(Example) AYS−14−2−030
Designation (e.g., 14)
Number of Cores (e.g., 2)
Cable Nominal Size / Designation (e.g., 030)

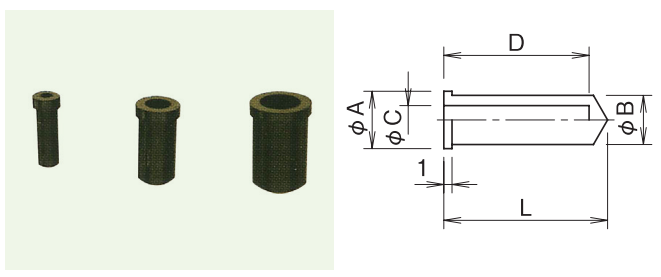

AYS Multi-Core Gripping Rubber Plug ANYP
It is used for adjusting the core count (number of cores) in multi-core connectors.
By cutting the tip of the plug before use, you can size down the accommodated cable diameter.
Unit: mm
| Nominal Size | Code | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | L | ||
| ANYP-030 | 4 | 3 | — | — | 14 | |
| ANYP-040 | 5 | 4 | 2 | 12 | ||
| ANYP-050 | 6 | 5 | 3 | |||
| ANYP-060 | 7 | 6 | 4 | 13 | 16 | |
| ANYP-070 | 8 | 7 | 4.5 | |||
| ANYP-080 | 9 | 8 | 5 | 14 | 18 | |
| ANYP-090 | 10 | 9 | 6 | |||
| ANYP-100 | 11 | 10 | 7 | |||
| Material | Nitrile Rubber | |||||
| Remarks | Nominal Size 030 is not hollow. | |||||
