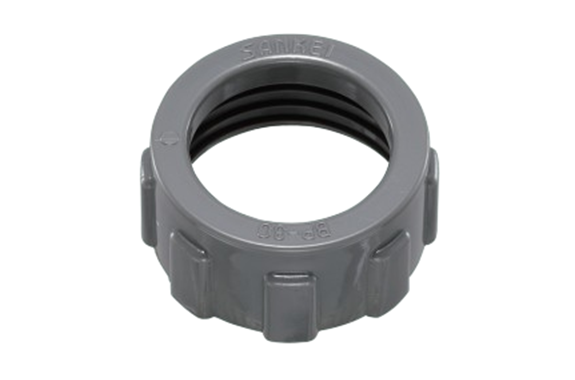

Yamato Electric BP Series Hiflex Bushing
Manufacturer: Yamato Electric Co., Ltd.
Model: BP Series
Hiflex Bushing BP
- Used for terminal protection of Hiflex PT flexible conduit.

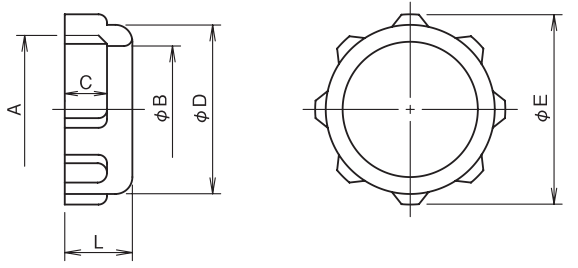

Unit: mm
| Model Name | Compatible PT Name | B | C | D | E | L | Mass (g) | |
|---|---|---|---|---|---|---|---|---|
| A | ||||||||
| BP-10 | 10 | 9.4 | 11 | 17.4 | 20.5 | 14 | 3 | |
| 12 | 12 | 10.9 | 11 | 20.9 | 23.5 | 14 | 3 | |
| 15 | 15 | 13.6 | 11 | 23.6 | 26.5 | 14 | 4 | |
| 17 | 17 | 16.3 | 12.5 | 26.3 | 29.4 | 16.5 | 5 | |
| 24 | 24 | 23.3 | 13.5 | 33.3 | 36.7 | 17.5 | 7 | |
| 30 | 30 | 28.8 | 14.5 | 40.8 | 43.2 | 19.5 | 10 | |
| 38 | 38 | 37.1 | 16 | 48.1 | 52.7 | 21 | 13 | |
| 50 | 50 | 48.6 | 16 | 61 | 65.2 | 22 | 20 | |
| 63 | 63 | 61.2 | 18 | 75 | 79.3 | 24 | 26 | |
| 76 | 76 | 74 | 20 | 90 | 94 | 26 | 37 | |
| Material | Polycarbonate | |||||||
| Remarks | ||||||||
