Yamato Electric Braided vinyl coated (double coated) flexible FAE dedicated connector MSE,MAE

Manufacturer: Yamato Electric Industry Co., Ltd
Model: MSE, MAE

This is a dedicated connector for EMI-shielded flex conduit FAE (P24).
Other flex conduit connectors can also be adapted for FAE use. (Please contact us for details.)
Waterproof and dustproof structure: Protection grade IP67 (Refer to compatibility table on P12)

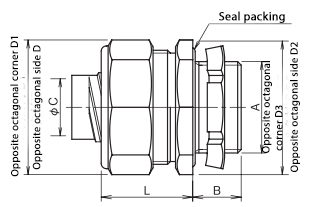

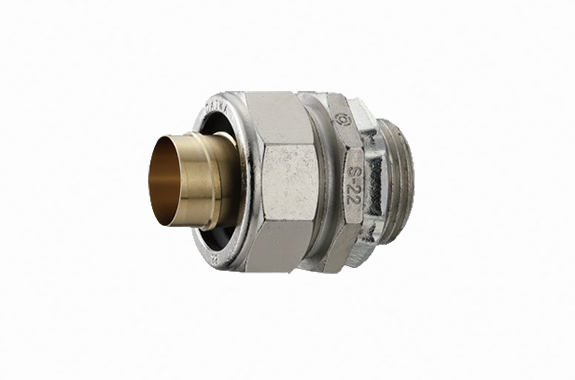

Straight Connector MSE

Mode/Code	Heavy Steel Thread A			B	Inner Diameter (C)	Length Before Tightening (L)	Opposite Flat (D)	Opposite Corner (D1)	Opposite Flat (D2)	Opposite Corner (D3)	Weight (g)
Mode/Code	Conduit Thread Nominal Size	Pipe Parallel Thread Nominal Size	Recommended Mounting Hole Diameter	B	Inner Diameter (C)	Length Before Tightening (L)	Opposite Flat (D)	Opposite Corner (D1)	Opposite Flat (D2)	Opposite Corner (D3)	Weight (g)
MSE-12-16	CTG 16	G 1/2	21	14	9.8	23	27	29	27	29	68
16-16	CTG 16	G 1/2	21	14	13.3	26.5	32	34.5	32	34.5	92
16-22	CTG 22	G 3/4	27	14	13.3	26.5	32	34.5	36	39	112
22-22	CTG 22	G3/4	27	14	17.5	26.5	36	39	36	39	108
28-28	CTG 28	G 1	34	16	22.7	29	46	50	46	50	184
36-36	CTG 36	G 11/4	42	18	31.7	30.5	54	58.5	54	58.5	224
Material	Body – Zinc Alloy Die-cast
Remarks

90° Angle Connector MAE

MSE

Mode/Code	Heavy Steel Thread A			B	Inner Diameter (C)	Length Before Tightening (L)	L1	Opposite Flat (D)	Opposite Corner (D1)	Opposite Flat (D2)	Opposite Corner (D3)	Weight (g)
Mode/Code	Conduit Thread Nominal Size	Pipe Parallel Thread Nominal Size	Recommended Mounting Hole Diameter	B	Inner Diameter (C)	Length Before Tightening (L)	L1	Opposite Flat (D)	Opposite Corner (D1)	Opposite Flat (D2)	Opposite Corner (D3)	Weight (g)
MAE-12-16	CTG 16	G 1/2	21	14	9.8	39.5	37	27	29	27	29	92
16-16	CTG 16	G 1/2	21	14	13.3	42.5	40	32	34.5	27	29	124
16-22	CTG 22	G 3/4	27	14	13.3	42	42	32	34.5	36	39	152
22-22	CTG 22	G3/4	27	14	17.5	48	49	36	39	36	39	174
28-28	CTG 28	G 1	34	16	22.7	54.5	57	46	50	46	50	292
36-36	CTG 36	G 11/4	42	18	31.7	59.5	65	54	58.5	54	58.5	396
Material	Body – Zinc alloy die-cast
Remarks
