Manufacturer: Yamato Electric Industry Co., Ltd
Model: MS-10×AY-8, MS-12×AY

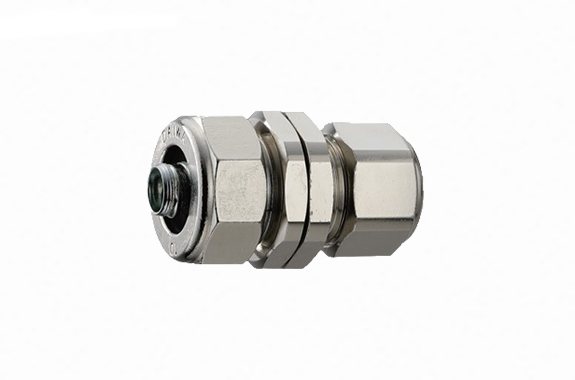

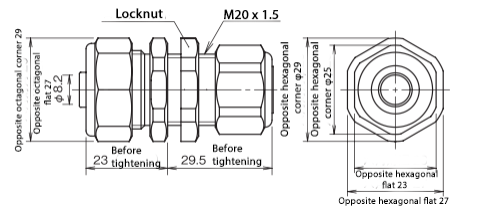

Cable Clamp Connector (with Locknut) MS-10×AY-8

This connector allows flexible conduit protection over any desired range of the cable.
You can ensure waterproofing of the cable outlet at the end of the flex without using a junction box.
The connector comes equipped with a locknut, which allows you to fix it in any desired position.
Waterproof/Dustproof structure: Protection grade IP67 (Refer to Flex and Connector Compatibility Table on P12)

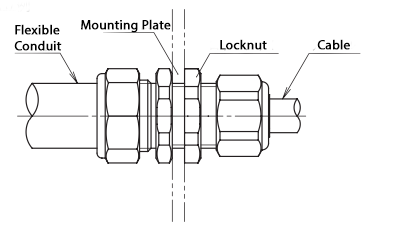

Assembly Example

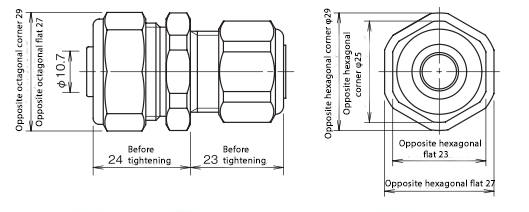

Cable Clamp Connector (without Locknut) MS-12×AY

This connector allows flexible conduit protection over any desired range of the cable.
Waterproofing at the cable outlet of the flex end can be ensured without using a junction box.
Waterproof/Dustproof construction: Protection rating IP67 (See Flex & Connector Compatibility Table on P12)
