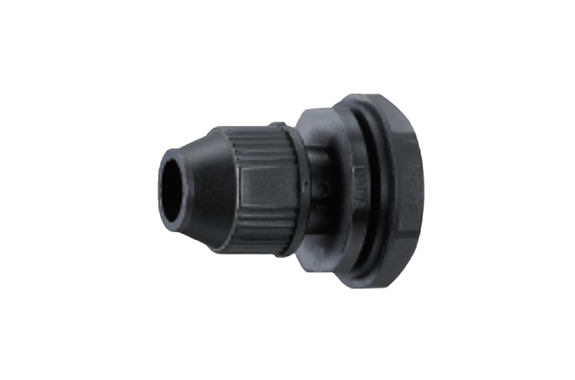

Yamato Electric EYS Series Easy Lock Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: EYS Series

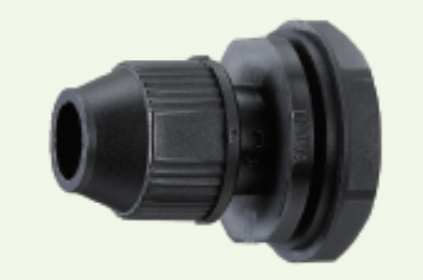

Easy Lock Connector EYS
- The body and cover nut use a special thread that allows the cable to be tightened quickly and securely without tools, thereby improving work efficiency.
- The cover nut is equipped with an anti-loosening mechanism.
- The material for the body, cover nut, and lock nut is flame-retardant grade UL94V-2 Polyamide (PA66).
- EYS’s dustproof and liquid-tight structure has an Ingress Protection (IP) rating of IP67.

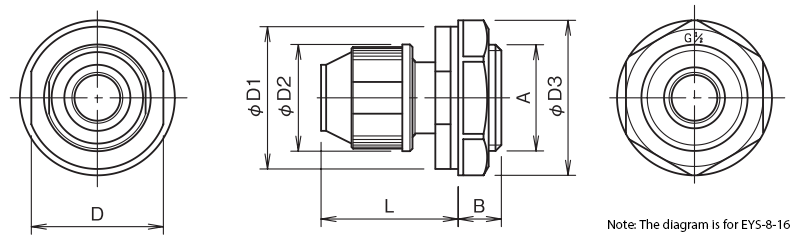

Unit: mm
| Nominal Size | Code | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Accommodated Cable Outer Dia | Armor Screw A | B | Hexagon D | D1 | D2 | D3 | Length Before Tightening L | Mass (g) | |||||
| Conduit Pipe Thread Nominal Size | Pipe Parallel Thread Nominal Size | Recommended Mounting Hole Diameter | |||||||||||
| EYS-6 | φ 3.5〜6.5 | — | G 1/4 | 14 | 10 | 19 | 20 | 19 | 21 | 25.5 | 6 | ||
| 6-16 | φ 3.5〜6.5 | CTG 16 | G 1/2 | 21 | 26 | 28 | 10 | ||||||
| 8-16 | φ 5.5〜8.5 | 21 | 30.5 | 11 | |||||||||
| Material | Polyamide (PA66) | ||||||||||||
| Remarks | |||||||||||||
