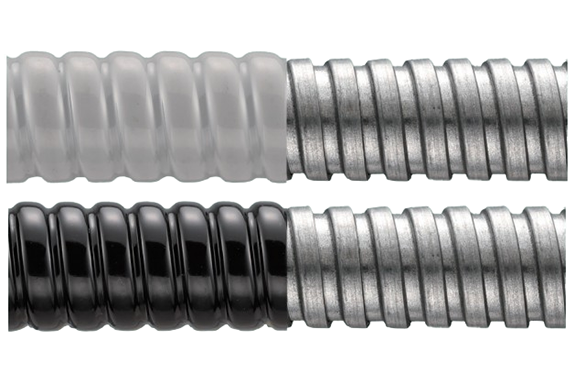

Yamato Electric FAG/ FAG-LG Series Wave-Shaped Vinyl-Coated Flex

Manufacturer: Yamato Electric Co., Ltd.
Model: FAG/ FAG-LG Series

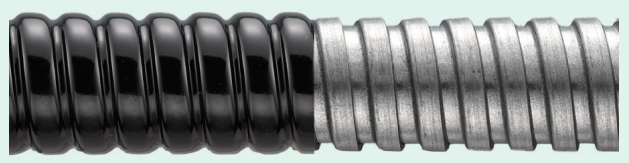

Corrugated Vinyl Coated Flexible Conduit FAG.

The vinyl is coated in a wave shape on a steel core that is twisted like a rope, providing excellent oil resistance.
The light weight and small bending radius offer flexibility and workability advantages.
It is mainly used in fixed piping, but can also be used for flexible pipes that require gentle movement.
Connecting to flexible connectors ensures waterproof performance (IP67 rating).

Usage temperature range: -20°C to +65°C (The cold resistance data is based on tests conducted according to JIS K 6723 and should be used as reference data when in a fixed usage state).

Vinyl color: black

Unit: mm

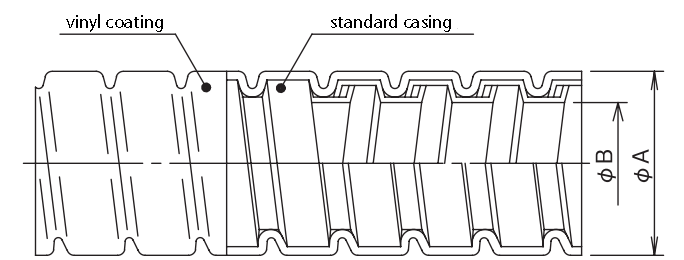

	Symbol
Nominal Size	Internal/External Diameter (mm)		Minimum Bending Radius (mm)		Mass (kg) / Length (m)
Nominal Size	Min. Internal Dia. (B)	Max. External Dia. (A)	Fixed	Moving	Mass (kg) / Length (m)
FAG-10	10	15.5	35	77	7.7 / 50
12	12.3	18	40	91	9.7 / 50
16	15.8	21.3	45	114	11.1 / 50
22	20.8	26.7	55	136	9.3 / 30
28	26.4	33.4	70	183	12.2 / 30
36	35	42.2	85	228	11 / 20
42	40	48.3	105	275	13.4 / 20
54	51.3	60.3	120	319	9.6 / 10
70	63.5	76.3	250	461	16 / 10
82^note	76.2	89	300	555	21 / 10
Material: Casing: Galvanized steel sheet; Coating: Soft polyvinyl chloride
Notes

Note: When ordering connectors for nominal size 82, please refer to the ordering examples on page P26 of the MS publication. Stainless steel is also available. (Made-to-order product)

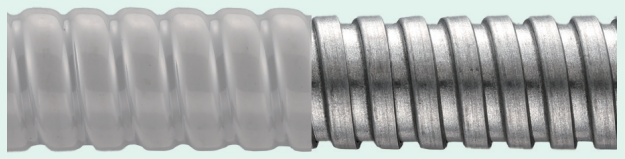

Wave-shaped Vinyl Coated Flexible Conduit (Light Gray) FAG-LG

It has the same structure as the FAG and is a vinyl coating in a light gray color.

Vinyl color: Light gray

Unit: mm

	Symbol
Nominal Size	Internal/External Diameter (mm)		Minimum Bending Radius (mm)		Mass (kg) / Length (m)
Nominal Size	Min. Internal Dia. (B)	Max. External Dia. (A)	Fixed	Moving	Mass (kg) / Length (m)
FAG-10 LG	10	15.5	35	77	4.6 / 30
12 LG	12.3	18	40	91	5.8 / 30
16 LG	15.8	21.3	45	114	6.7 / 30
22 LG	20.8	26.7	55	136	6.2 / 20
28 LG	26.4	33.4	70	183	8.1 / 20
36 LG	35	42.2	85	228	8.3 / 15
42 LG	40	48.3	105	275	10.1 / 15
54 LG	51.3	60.3	120	319	9.6 / 10
Material: Casing: Galvanized steel sheet; Coating: Soft polyvinyl chloride
Notes:
