Yamato Electric FAN-06/ FAG-06/ FAW-06 Small Diameter Flexible Conduit
Manufacturer: Yamato Electric Co., Ltd.
Model: FAN-06/ FAG-06/ FAW-06

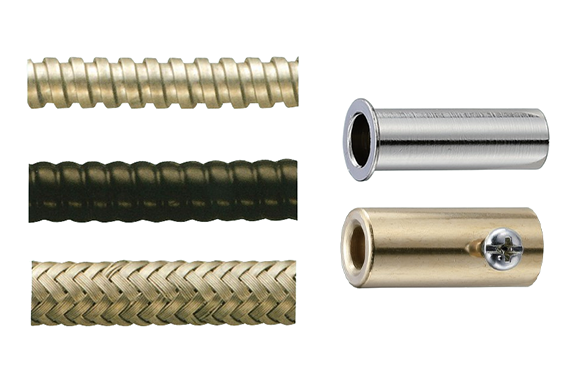

Small Diameter Flexible Conduit FAN-06 FAG-06 FAW-06
- This is a flexible conduit for protecting thin cables.
- For end protection, please use a terminal bushing and a collar.

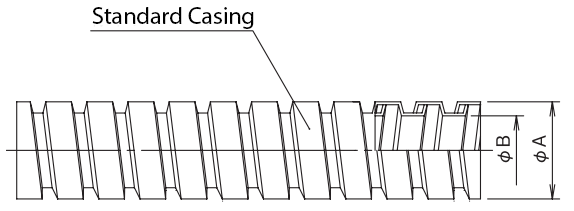

Casing FAN-06

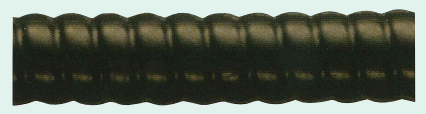

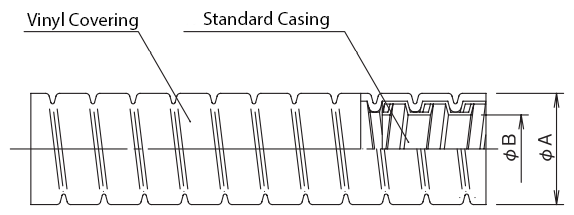

Corrugated Vinyl Covered Flexible Conduit FAG-06

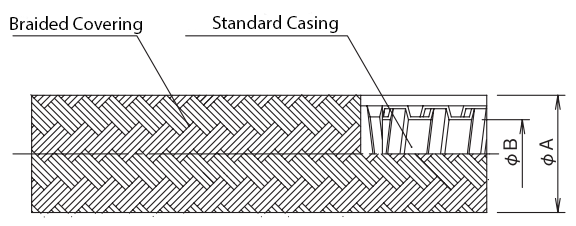

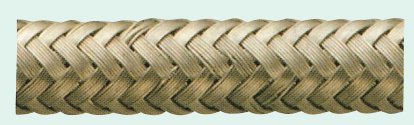

Braided Covered Flexible Conduit FAW-06
Unit: mm
| Designation | Code | ||||
|---|---|---|---|---|---|
| Minimum Inner Diameter B | Maximum Outer Diameter A | Minimum Bending Radius (Fixed) | Mass (kg) /Length per Roll (m) | ||
| FAN-06 | 6.4 | 9 | 22 | 3.8 / 50 | |
| FAG-06 | 6.4 | 10.5 | 25 | 5 / 50 | |
| FAW-06 | 6.4 | 11 | 25 | 8 / 50 | |
| Material | Casing: Galvanized Steel Vinyl Covering: Soft PVC Braided Covering: Galvanized Steel Wire | ||||
| Remarks | |||||

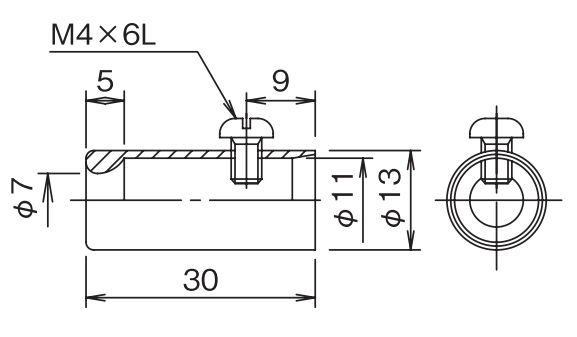

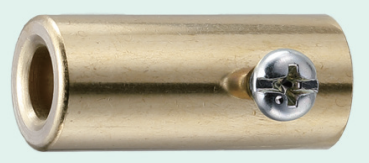

Terminal Bushing STB-06
| Material | Brass Rod |
|---|---|
| Mass / Weight | 11 g |
| Remarks |

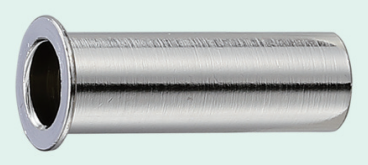

Collar SC-06
| Material | Brass Rod |
|---|---|
| Mass / Weight | 1.5 g |
| Remarks |
