Yamato Electric

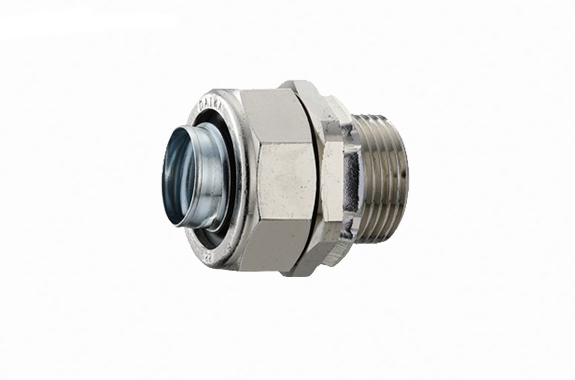

Yamato Electric Fixed relay connector MS-16-22X16F
Manufacturer: Yamato Electric Industry Co., Ltd
Model: MS-16-22X16F
- The flex connector connection meets IP67 (see P12 for compatibility details).
- Seal the connection with the other connector properly if you require waterproofing.
- The flex connector connection part achieves an IP67 waterproof/dustproof rating (see the compatibility table on P12 for the P12 flex and connector)..

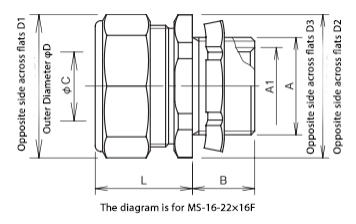

| Model/Code | Thick Steel Female Thread A | Thick Steel Male Thread A1 | B | Inner Diameter C | Length Before Tightening L | Opposite Flat (D) | Opposite Corner (D1) | Opposite Flat (D2) | Opposite Corner (D3) | Weight (g) | Quantity per Box (pcs) | |||
| Electrical Conduit Thread Designation | Parallel Pipe Thread Designation | Recommended Mounting Hole Diameter | Electrical Conduit Thread Designation | Parallel Pipe Thread Designation | ||||||||||
| MS-16-22X16F | CTG 22 | G3/4 | 27 | CTG 16 | G 1/2 | 17 | 14 | 26.5 | 32 | 34.5 | 36 | 39 | 118 | 16 |
| 22-22 X16F | CTG 22 | G3/4 | 27 | CTG 16 | G 1/2 | 17 | 18.9 | 26.5 | 36 | 39 | 36 | 39 | 120 | 16 |
| 28-28X22F | CTG 28 | G 1 | 34 | CTG 22 | G3/4 | 20 | 24.5 | 29 | 46 | 50 | 46 | 49 | 212 | 9 |
| Material | Body: Brass Rod | |||||||||||||
| Remarks | ||||||||||||||

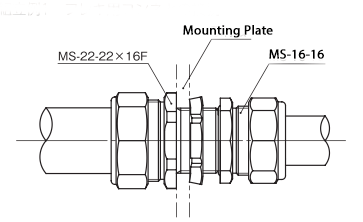

Assembly Example 1 – Connection with Flex Connector

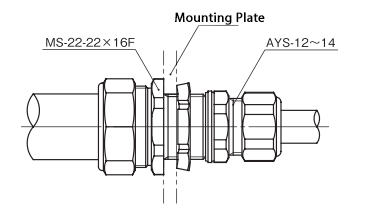

Assembly Example 2 – Connection with Cable Connector

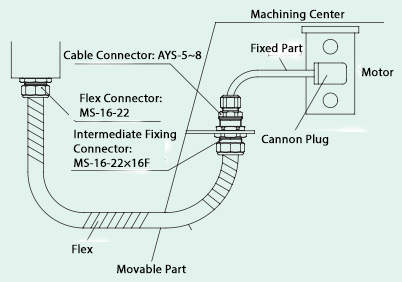

- By connecting a cable connector, this connector can grip and relay the cable inside the flexible conduit.
- It is suitable for cases where the fixed side and movable side are separated and relayed.
