Yamato Electric FPX-20E Side Mounting Type

Manufacturer: Yamato Electric Co., Ltd.
Model: FPX-20E

Heat Pipe Heat Exchanger

The ultimate in efficiency, this heat exchanger utilizes heat pipes. We offer a lineup including side-mounting types and ceiling-mounting types.

Features

The efficiency of heat transport is extremely high (hundreds to a thousand times that of heat conduction), allowing the heat exchanger itself to be smaller in size.
No power other than the fan required to enhance heat transport efficiency is necessary.
Since there are no mechanical parts, failures are completely eliminated. The container for the heat transport element is made of copper, resulting in high corrosion resistance, allowing the heat pipe section to be used almost semi-permanently under normal conditions.
Since it is not a refrigerating machine, no condensation occurs.
The working fluid does not use CFCs (chlorofluorocarbons), so it does not harm the environment.

Operating Principle

A heat pipe is a cylindrical container that has been evacuated (vacuum-sealed) and filled with a small amount of liquid. When one end of the heat pipe is heated, the liquid inside the cylinder turns into vapor and travels to the other end. When cooled at the other end, the vapor turns back into liquid and returns to the evaporation section by gravity. In this way, the working fluid constantly circulates within a single pipe, and heat is transferred from one end to the other with a low temperature difference.

Characteristics of Heat Pipes

The characteristic chart shows the result of measuring the temperature at the other end of a heat pipe with an outer diameter of $14 \text{mm}$ and length of $200 \text{mm}$ , when one $50 \text{mm}$ section was immersed in hot water at $90 \text{°C}$ (room temperature $25 \text{°C}$ ). For comparison, the results of an experiment conducted under approximately the same conditions using a copper bar of the same shape are also shown. This reveals that the temperature at the other end of the heat pipe rises rapidly, and its temperature time constant is more than one order of magnitude smaller compared to the copper bar.

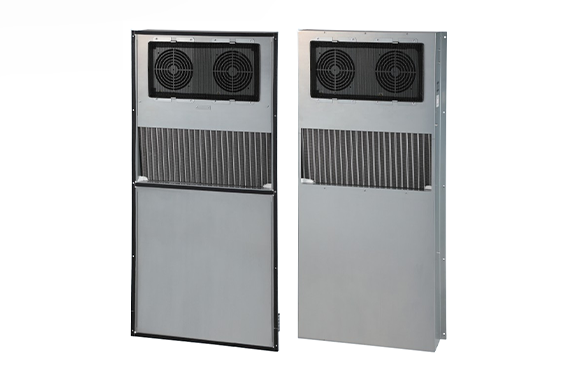

FPX Series (Side Mounting) FPX-20E

Rated Capacity: $100 / 108 \text{ W/K}$

It is compact and has the heat exchange capacity to handle large heat generation amounts.
It is a non-fluorocarbon type that uses pure water as the working fluid in the heat pipe.
It has a sealed structure that reliably blocks dust and mist from entering the control panel.

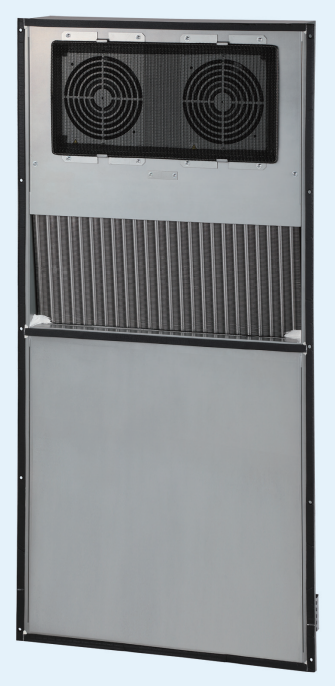

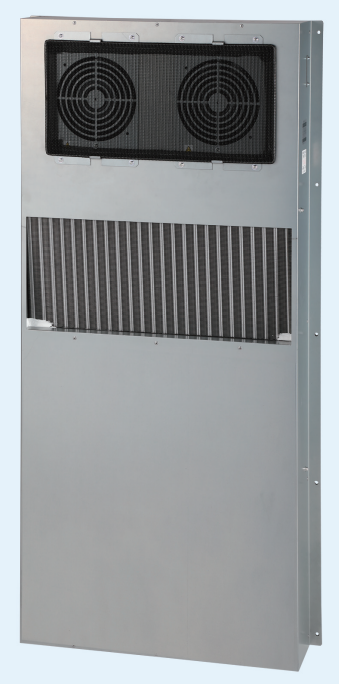

Panel Internal Mounting Type FPX-20ER	Panel External Mounting Type FPX-20EF

Specifications

Mounting Method	Side Mount (Inside Panel)		Side Mount (Outside Panel)
Model	FPX-20ER-1F	FPX-20ER-2F	FPX-20EF-1F	FPX-20EF-2F
Rated Capacity Note 1 (W/K)	100 / 108		100 / 108
Rated Voltage (V)	100	200	100	200
Rated Current Note 2 (A)	2.12 / 1.80	1.00 / 0.92	2.12 / 1.80	1.00 / 0.92
Operating Ambient Temperature (°C)	0 ~ 40 (Max. panel temperature 60°C)
Operating Humidity Range (%)	20 ~ 85
Fan Capacity × Number of Fans (W)	42 / 40 × 4
Case Material · Color	Corrosion-resistant galvanized steel plate · No paint

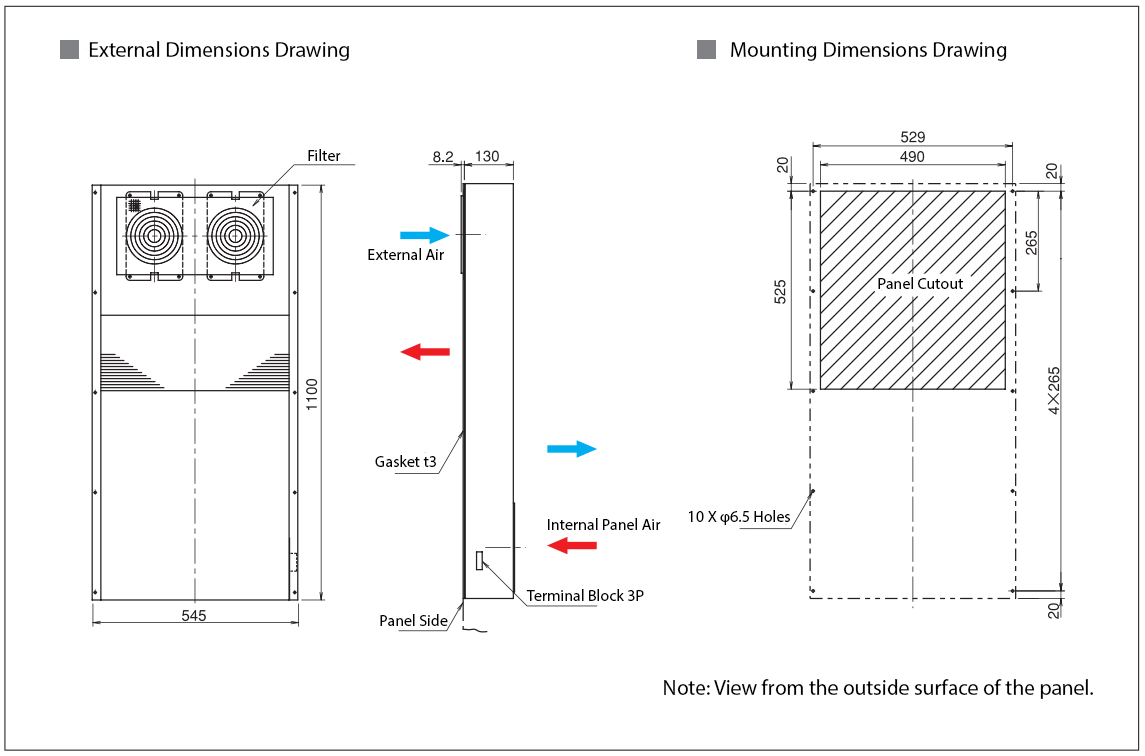

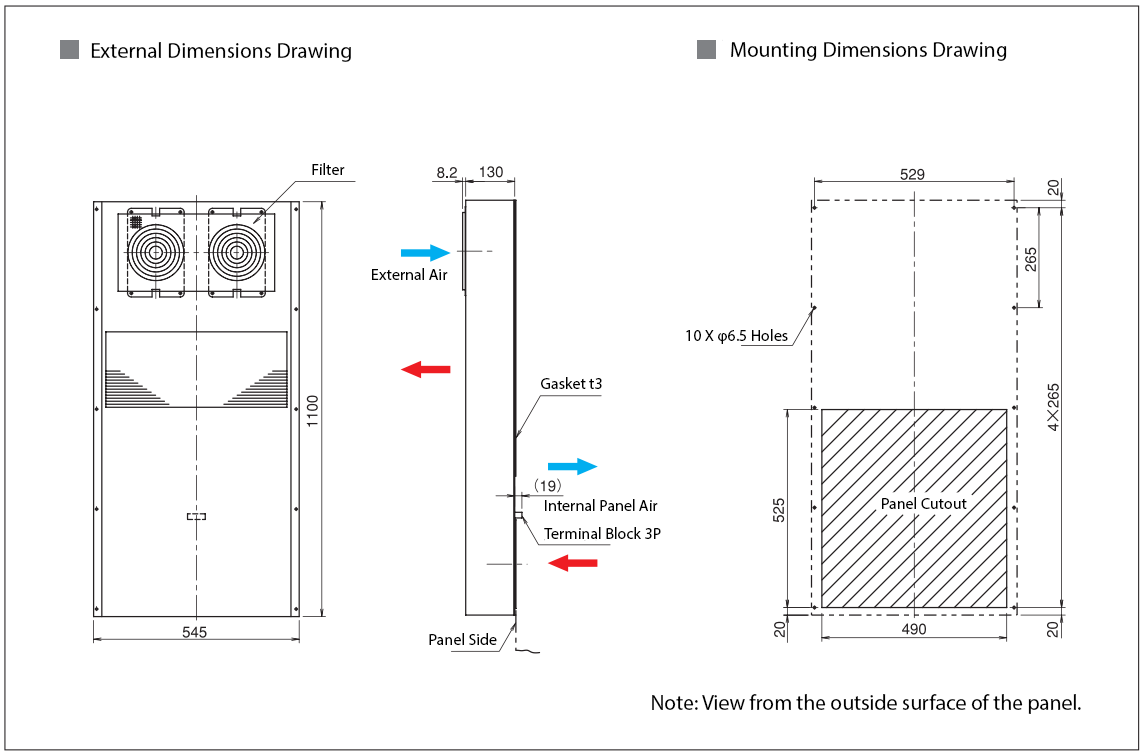

External Dimensions (Width × Height × Depth) (mm)	545 × 1100 × 130
Mass (kg)	26

Note 1: Rated capacity is based on Japan Refrigeration and Air Conditioning Industry Association Technical Material No. 004.
Note 2: Rated current shows the total of the rated currents of the fans used.
/ indicates that the value on the left is for 50Hz and the value on the right is for 60Hz.

※ When used outdoors, take measures against direct sunlight and rainproof/waterproof treatment.
※ Support for different voltages is also available. Please inquire for details.
