Yamato Electric FSV Series Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit

Manufacturer: Yamato Electric Co., Ltd.
Model: FSV Series

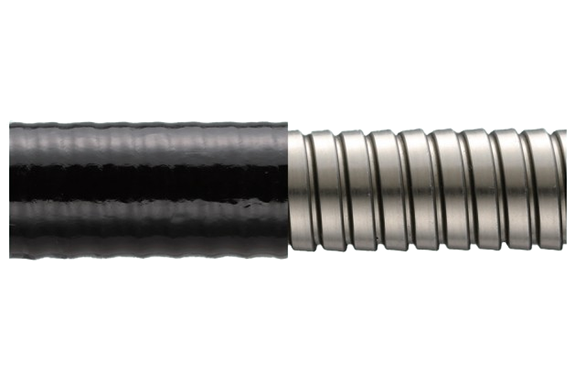

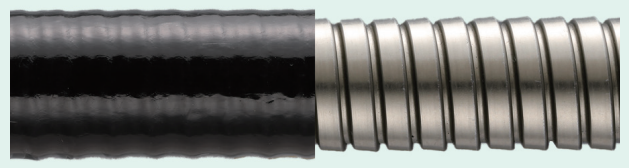

Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit FSV

This is a flexible conduit with a sealed, oil-resistant vinyl coating and a casing made of a galvanized steel strip fitted in a semi-interlocking structure.
It can be used in locations requiring tensile and torsional strength, as well as for movable parts.
By connecting it to a flexible conduit connector, liquid-proofing (equivalent to IP67) can be ensured. (Refer to the flexible conduit and connector compatibility table on P12)

Operating Temperature Range: -20°C to +65°C (The cold resistance temperature is test data compliant with JIS K 6723 and is a reference value for use in a fixed state.)

Vinyl color: black

Unit: mm

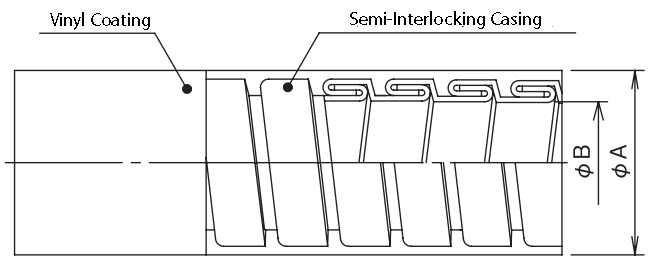

	Symbol
Nominal Size	Internal/External Diameter (mm)		Minimum Bending Radius (mm)		Mass (kg) / Length (m)
Nominal Size	Min. Internal Dia. (B)	Max. External Dia. (A)	Fixed	Moving	Mass (kg) / Length (m)
FSV-10	10	15.5	65	119	9.6 / 30
12	12.3	18	70	141	11.4 / 30
16	15.8	21.3	80	176	13.8 / 30
22	20.8	26.7	110	211	18.3 / 30
28	26.4	33.4	130	283	24.9 / 30
36	35	42.2	150	359	19.6 / 20
42	40	48.3	180	425	23.1 / 20
54	51.3	60.3	210	494	13.4 / 10
70	63.5	76.3	300	691	31.8 / 10
82^note	76.2	89	320	833	39.6 / 10
Material: Casing: Galvanized steel sheet; Coating: Soft polyvinyl chloride
Notes:

Notes: When ordering a connector for nominal size 82, please refer to the ordering example on the MS publication page (P26). Stainless steel is also available. (Made-to-order product)
