Yamato Electric FSVS Series Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit (Solvent-Resistant)

Manufacturer: Yamato Electric Co., Ltd.
Model: FSVS Series

Sealed-Type Vinyl Coated Semi-Interlocking Flexible Conduit (Solvent-Resistant) FSVS

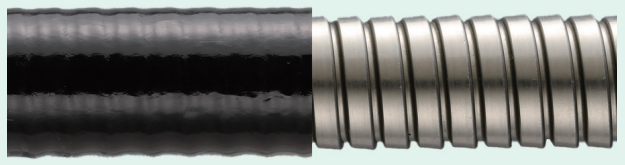

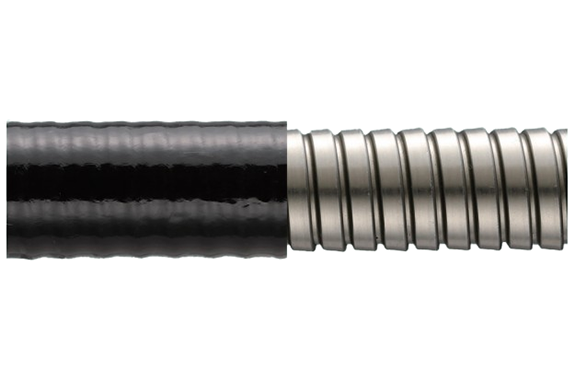

This is a flexible conduit with a sealed, solvent-resistant vinyl coating and a casing made of a galvanized steel strip fitted in a semi-interlocking structure.
It is suitable for use in oily environments or atmospheres with solvents.
It can be used in locations requiring tensile and torsional strength, as well as for movable parts.
By connecting it to a flexible conduit connector, liquid-proofing (equivalent to IP67) can be ensured. (Refer to the flexible conduit and connector compatibility table on P12)
We recommend using it in combination with a solvent-resistant connector. Please inquire.

Operating Temperature Range: -20°C to +60°C (The cold resistance temperature is test data compliant with JIS K 6723 and is a reference value for use in a fixed state.)

Vinyl color: black

Unit: mm

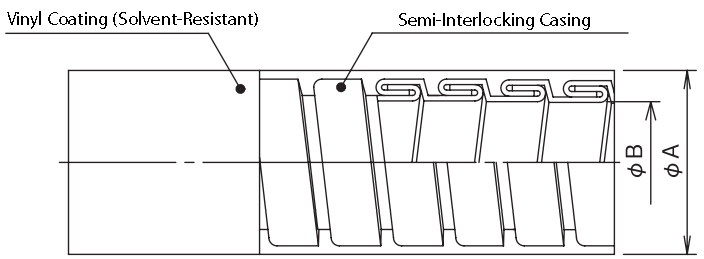

	Symbol
Nominal Size	Internal/External Diameter (mm)		Minimum Bending Radius (mm)		Mass (kg) / Length (m)
Nominal Size	Min. Internal Dia. (B)	Max. External Dia. (A)	Fixed	Moving	Mass (kg) / Length (m)
FSVS-10	10	15.5	65	119	9.6 / 30
12	12.3	18	70	141	11.4 / 30
16	15.8	21.3	80	176	13.8 / 30
22	20.8	26.7	110	211	18.3 / 30
28	26.4	33.4	130	283	24.9 / 30
36	35	42.2	150	359	19.6 / 20
42	40	48.3	180	425	23.1 / 20
54	51.3	60.3	210	494	13.4 / 10
Material: Casing: Galvanized steel sheet; Coating: Soft polyvinyl chloride (Solvent-Resistant)
