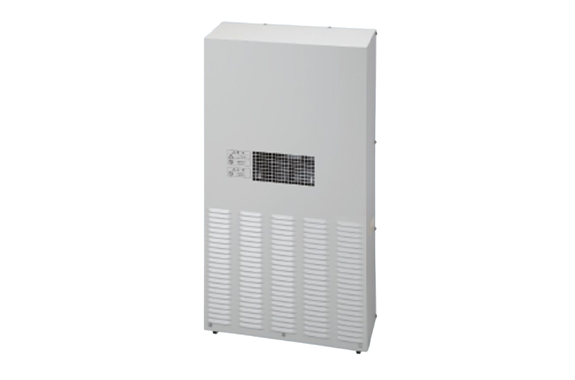

Yamato Electric KCD-20 Side Mounting Type/ Outdoor Use

Manufacturer: Yamato Electric Co., Ltd.
Model: KCD-20

Outdoor Cooler Translation

As advanced communication networks develop, network systems are present everywhere outdoors. The outdoor cubicle model reliably protects the internal equipment even under severe conditions such as sun exposure, wind, rain, and dust. Furthermore, by adopting low-noise sirocco fans proven in building air conditioners and multi-stage control tailored to the air conditioning load, we have achieved the industry’s top-class ultra-low noise level of $40\text{dB}$ (KCD-10-1).

High Waterproof Performance

JISC $0920$ Protection class 4 or higher.
No harmful water leakage at wind speeds of $20\text{m/s}$ and water flow of $4\text{L/m}^2 \cdot \text{min}$ .
No harmful damage or breakage at wind speeds of $40\text{m/s}$ .

Excellent Environmental Resistance

The exterior panel uses highly corrosion-resistant hot-dip galvanized steel sheet with a heavy anti-salt damage coating.
The heat exchanger on the heat dissipation side uses aluminum fins treated for corrosion resistance and further coated with urethane resin. Achieves rust prevention performance of $1000$ hours or more in the salt spray test (JISC $5400$ ).

Compliant with NTT-TR (KCD-10/20).

Enables reliable temperature management without interfering with advanced network equipment.
Measurement of radiated disturbance waves (TR $55004$ and VCCI CLASS B)
Measurement of power line conducted disturbance waves (TR $55004$ and VCCI CLASS B)
Radiated immunity test (TR $549001$ ) (IEC $61000-4-3$ )
Conducted immunity test (TR $549001$ ) (IEC $61000-4-3$ )
Electrical Fast Transient test (EFT/B) (TR $549001$ ) (IEC $61000-4-2$ )
Electrostatic discharge test (ESD test) (TR $549001$ ) (IEC $61000-4-2$ )
Lightning surge application test (TR $189001$ ) (IEC $61000-4-5$ )

Features List (Available features vary by model)

Maintenance Notification Function	Refrigerant Pressure Abnormality Alarm	Temperature Sensor Abnormality Alarm	Panel Internal Temperature Abnormality Display	Overload Protection Device

Displays a filter check output signal at set intervals.	If the refrigerant pressure rises due to filter clogging or other issues, the unit stops abnormally and the alarm contact is activated.	The unit stops and the alarm contact is activated if there is an abnormality in the panel internal temperature sensor or the evaporator temperature sensor.	An abnormality is displayed if the panel internal temperature reaches the set temperature plus $10^\circ\text{C}$ or higher.	If the compressor continues to operate under an overload condition, the protection device automatically stops the compressor.

Outdoor Specification	Inverter Control	Self-Diagnosis Function	Low Noise	DC $48\text{V}$ Compatibility
A cooler for outdoor control panel cooling.	Energy saving is achieved through inverter control.	Added more detailed diagnostic functions when an error occurs.	Industry-leading low noise achieved through the adoption of sirocco fans.	Can handle a wide range of voltage fluctuations (- $-40\sim -59\text{V}$ ).

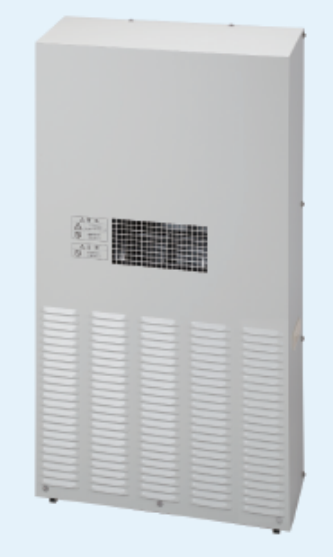

V.AN COOL (Side Mounting) KCD-20

Cooling Capacity: 1800/2000 W

Achieves ultra-low noise (45dB) suitable for installation in residential areas.
Excellent environmental performance due to exterior panels treated with heavy anti-salt damage coating.
Wide operating ambient temperature range ( $-10\sim 45^\circ\text{C}$ ).

Refrigerant Pressure Abnormality Alarm	Temperature Sensor Abnormality Alarm	Panel Internal Temperature Abnormality Display	Frost/Freezing Prevention Function	Overload Protection Device	Low Noise	Outdoor Specification

Specifications

Mounting Method	Side Mounting
Model	KCD-20-2

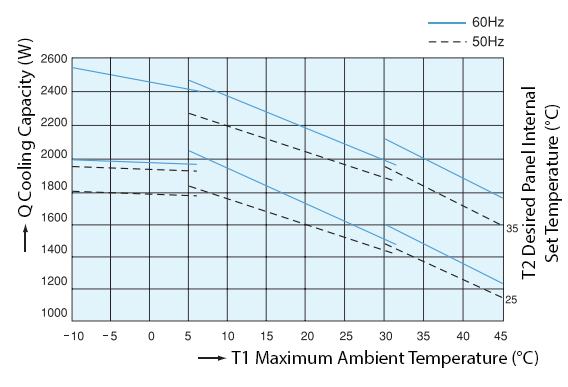

Cooling Capacity Note 1 (W)	1800 / 2000
Power Source Single Phase (V)	200
Power Consumption Note 1 (W)	766 / 913
Operating Current Note 1 (A)	4.4 / 4.6
Starting Current Note 1 (A)	30 / 27
Recommended Leakage Breaker Capacity Note 2 (A)	10
Operating Noise [dB(A)]	Hi Mode: 48 / 51 Lo Mode: 45 / 45
Refrigerant (Sealed Amount) (g)	R-134a (470)
Panel Internal Temperature Setting Range (°C)	25 ~ 40
Ambient Temperature Range (°C)	-10 ~ 45

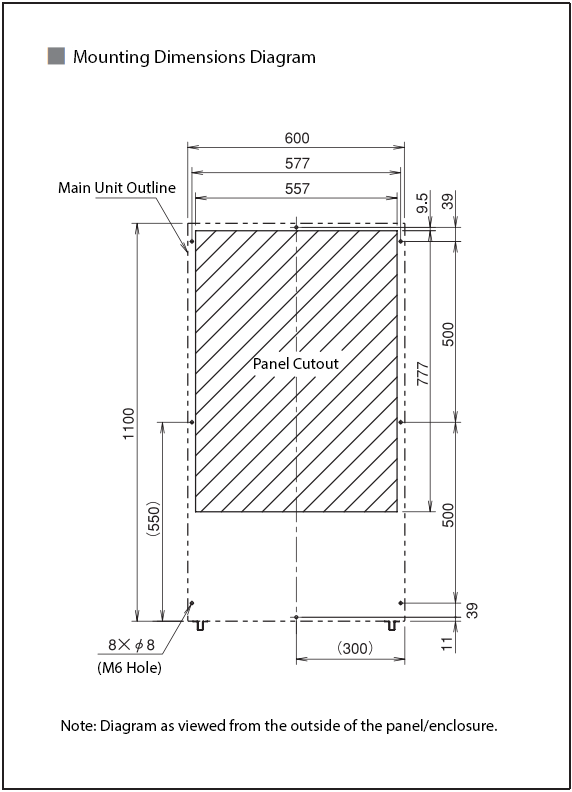

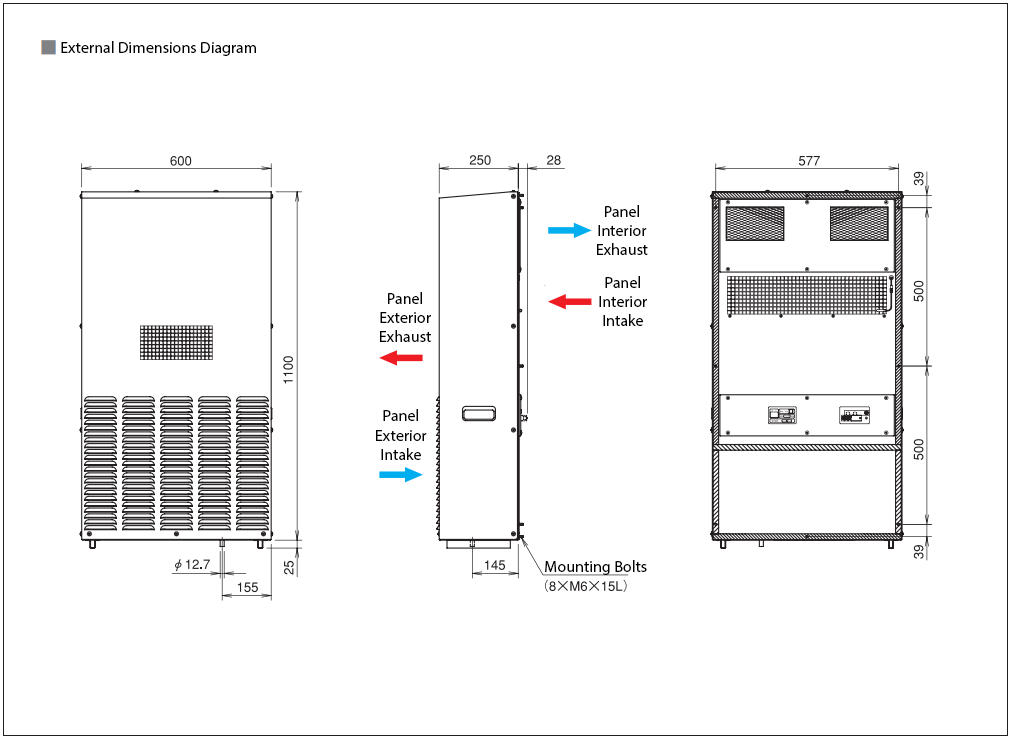

External Dimensions (W × H × D) (mm)	600 × 1100 × 250
Mass (kg)	53
Main Body Coating Color	0.5Y8/0.7 (Beige)
Unit Waterproof Standard	JIS C 0920 Protection Class 4
Accessories	Mounting Nuts (M6) 8 pcs

Note 1: Rated value at: Control Panel internal dry bulb temp 35°C, wet bulb temp 19.5°C, and Control Panel external dry bulb temp 35°C. Cooling capacity is based on Technical Document No. 007 of the Industrial Association of Thermal Equipment for Control Panels.
Note 2: Rated sensitivity current 15mA.
The values indicated by / are 50Hz on the left and 60Hz on the right.
