Manufacturer: Yamato Electric Co., Ltd.
Model: KCHS-07A-2

Control Panel Cooler: Non-Freon, Non-Drain Model

This is a non-Freon, non-drain cooler that adopts the new refrigerant R-1234yf.

Features

• This refrigerant is used in common products utilized daily. You can use it with peace of mind.
• The Ozone Depletion Potential (ODP) is zero. It is an extremely environmentally friendly refrigerant.
• No mandatory management required for various inspections or refrigerant recovery/destruction. Reduces maintenance and disposal costs. (Exempt from the Fluorocarbon Emission Control Law).
• Achieves non-drain operation by adopting a highly absorbent filter and utilizing the cooler’s exhaust heat to vaporize the drain water. Non-drain operation is realized even in high-temperature, high-humidity environments of ambient air 30°C and 80% humidity.

Four Selectable Operating Modes

Maintenance Notification Function	Refrigerant Pressure Abnormality Alarm	Temperature Sensor Abnormality Alarm	Panel Internal Temperature Abnormality Display
Displays a filter check output signal at set intervals.	If the refrigerant pressure rises due to filter clogging or other issues, the unit stops abnormally and the alarm contact is activated.	The unit stops and the alarm contact is activated if there is an abnormality in the panel internal temperature sensor or the evaporator temperature sensor.	An abnormality is displayed if the panel internal temperature reaches the set temperature plus 10°C or higher.
Energy Saving Mode	Semi-Recessed Mounting Compatibility	Louver Included	Non-Drain
Allows setting for energy-saving operation with restricted functionality for the internal fan, external fan, compressor, etc.	Allows for semi-recessed mounting, securing space around the control panel.	Equipped with an accessory louver for adjusting airflow direction at the panel internal discharge port.	Drain water is forcibly evaporated using the heat from the compressor and condenser within the refrigerant circuit.

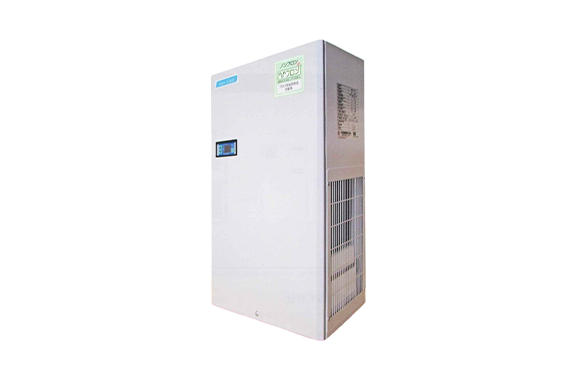

Non-Freon Non-Drain Cooler KCHS-07A-2 (For IndoorUse)

Maintenance Notification Function	Refrigerant Pressure Abnormality Alarm	Frost/Freezing Prevention Function	Temperature Sensor Abnormality Alarm	Panel Internal Temperature Abnormality Display	Overload Protection Device	Non-Drain

Drainage Water Discharge Amount 0ml/h!

(Factory measurement value at temperature 30°C and relative humidity 80%.)

We offer a lineup of side-mounting non-drain coolers that can be used in environments where drainage water treatment in factories is an issue.
We completely vaporize the drain water and block drain discharge by adopting the cooler’s exhaust heat (heat exchanger) + a superior absorbent filter.
Because the cooler’s exhaust heat is utilized, there is no power consumption necessary for drain water treatment.
Non-drain operation is achieved even in high-temperature, high-humidity environments with ambient air 30°C and humidity 80%.

New Refrigerant R-1234yf Adopted!

R-1234yf was developed as a substitute refrigerant for R-134a, and has a lower Global Warming Potential compared to R-134a, making it an extremely environmentally friendly refrigerant.

※1: IPCC 5th Assessment Report 2013

Oil-Resistant Fan Adopted

In harsh environments where oil mist atmospheres or dust dance, the fan on the panel exterior side, which is susceptible to damage, has been changed to an oil-resistant fan.
This significantly reduces the effort and trouble of fan replacement work due to lifespan issues or failure in manufacturing sites.

Single Phase 200V 700W

<Products Exempt from the Fluorocarbon Emission Control Law>

700W non-fluorocarbon under sisized.

KCHS-07A-2

Specifications

※1: “Rated” refers to the nominal cooling capacity when the ambient and panel internal temperatures are 35°C.
※2: “Rated” refers to the nominal value when the ambient and panel internal temperatures are 35°C and 40%RH.
※3: Rated sensitivity current 30mA.
※4: Cannot be used outside the temperature range.

Cooling Performance Characteristics Graph

External and Mounting Dimensions Diagrams Translation

※To ensure safe use, please read the “Instruction Manual” before use. ※Please note that specifications, etc., may be changed without prior notice.
