Yamato Electric

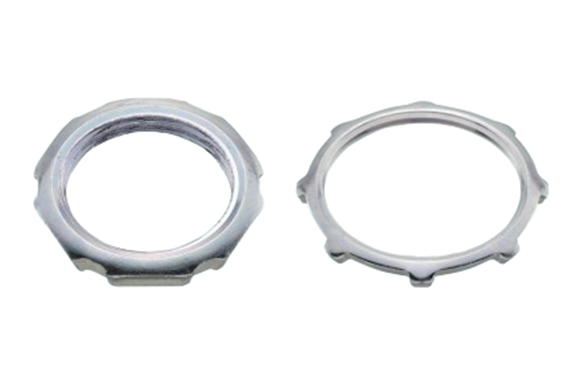

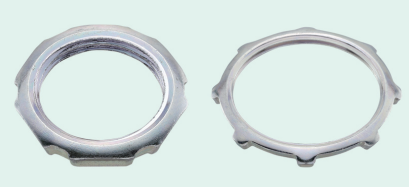

Yamato Electric LN Series Lock Nut
Manufacturer: Yamato Electric Co., Ltd.
Model: LN Series
Lock Nut LN
Unit: mm
| For Thick-Wall Steel Conduit Thread | For Thin-Wall Steel Conduit Thread | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Code | Nominal Size | Code | |||||||

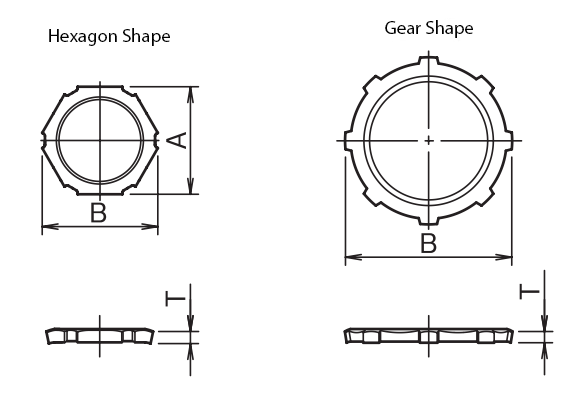

| A | B | T | A | B | T | Shape | ||||
| LN-16 | 27 | 29 | 4.5 | LN-19 | 24 | 26 | 3.8 | Hexagon Shape | ||
| 22 | 33 | 36 | 5 | 25 | 31.5 | 34 | 3.8 | Hexagon Shape | ||
| 28 | 41 | 44 | 5 | 31 | 38 | 41 | 5 | Hexagon Shape | ||
| 36 | 49 | 53 | 5 | 39 | 45 | 49 | 5 | Hexagon Shape | ||
| 42 | — | 61 | 5 | 51 | — | 65 | 5 | Gear Shape | ||
| 54 | — | 74 | 5 | 63 | — | 79 | 5 | Gear Shape | ||
| 70 | — | 93 | 5 | 75 | — | 93 | 5 | Gear Shape | ||
| 82 | — | 106 | 5 | |||||||
| Material | Polished Steel Plate | |||||||||
| Remarks | ||||||||||
