Yamato Electric LS Series Square Junction Box
Manufacturer: Yamato Electric Co., Ltd.
Model: LS Series

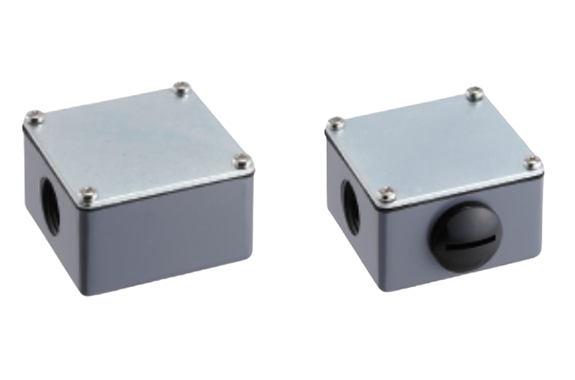

Square Junction Box LS
- A compact junction box made of aluminum alloy die-cast, offering excellent mechanical strength (Lid is made of steel plate).
- Dust-proof · Liquid-proof structure: Protection class IP65 (Joint surface between main body and lid)

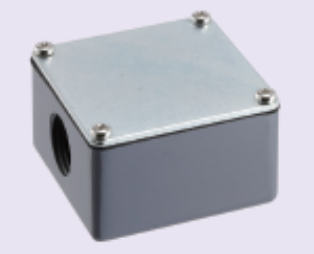

LS-2
Main Body Exterior Approximate Coating Color: Munsell 2.5P6/4

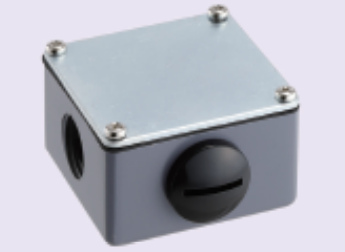

LS-4
Main Body Exterior Approximate Coating Color: Munsell 2.5P6/4
| Material | Main Body: Aluminum Alloy Die-Cast |
|---|---|
| Lid: Polished Steel Plate with Rubber Gasket | |
| Mass | LS-2 165g, LS-4 177g |
| Remarks | LS-2 is without bushing |
