Yamato Electric MA Series 90° Angle Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MA Series

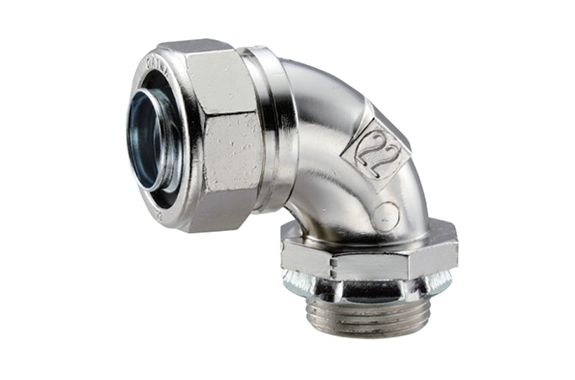

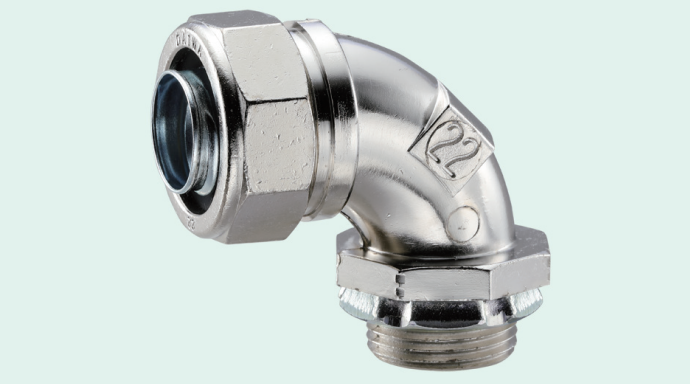

90°Angle Connector MA
- This is a standard 90° angle connector used to connect a control panel and a flexible conduit.
- It features a guide collar that protects both the inner and outer diameters of the flexible conduit end, and a newly developed tightening ring, ensuring reliable tightening and securing.
- Liquid-proofing/Protective structure: Protection class IP67 (Refer to the flexible conduit and connector compatibility table on P12)
Unit: mm
| Symbol | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Threaded Steel Conduit A | Inner Dia. B | Inner Dia. C | Length L | Length L1 | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | Quantity/Box (pcs) | ||
| Conduit | Parallel Thread | Recommended Mounting Hole | |||||||||||
| MA-10-16 | CTG 16 | G 1/2 | 21 | 14 | 8.2 | 37 | 33 | 27 | 29 | 27 | 29 | 82 | 10 |
| MA-12-16 | CTG 16 | G 1/2 | 21 | 14 | 10.7 | 39.5 | 37 | 27 | 29 | 27 | 29 | 82 | 10 |
| MA-16-16 | CTG 16 | G 1/2 | 21 | 14 | 14 | 42.5 | 40 | 32 | 34.5 | 27 | 29 | 114 | 8 |
| MA-16-22 | CTG 22 | G 3/4 | 27 | 14 | 14 | 42 | 42 | 32 | 34.5 | 36 | 39 | 136 | 8 |
| MA-22-22 | CTG 22 | G 3/4 | 27 | 14 | 18.9 | 48 | 49 | 36 | 39 | 36 | 39 | 158 | 6 |
| MA-28-28 | CTG 28 | G 1 | 34 | 16 | 24.5 | 54.5 | 57 | 46 | 50 | 46 | 50 | 258 | 4 |
| MA-36-36 | CTG 36 | G 11/4 | 42 | 18 | 33.1 | 59.5 | 65 | 54 | 58.5 | 54 | 58.5 | 365 | 3 |
| MA-42-42 | CTG 42 | G 11/2 | 48 | 18 | 38.1 | 66.5 | 73 | 60 | 65 | 60 | 65 | 500 | 2 |
| MA-54-54 | CTG 54 | G 2 | 60 | 20 | 49.4 | 80.5 | 91 | 75 | 81 | 77 | 84 | 870 | 1 |
| MA-70-70 | CTG 70 | G 2 1/2 | 76 | 27 | 60.8 | 104 | 111.5 | 95 | 103 | 95 | 103 | 1900 | 1 |
| MA-82-82note | CTG 82 | G 3 | 88 | 30 | 71.6 | 123 | 130.5 | 110 | 119 | 110 | 119 | 2500 | 1 |
| Material: Body: Zinc alloy die casting, blackheart malleable cast iron | |||||||||||||
| Notes | |||||||||||||
Unit: mm
| Symbol | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Threaded Steel Conduit A | Inner Dia. B | Inner Dia. C | Length L | Length L1 | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | Quantity/Box (pcs) | ||
| Conduit | Parallel Thread | Recommended Mounting Hole | |||||||||||
| MA-10-19 | CTC 19 | — | 20 | 14 | 8.2 | 37 | 33 | 27 | 29 | 27 | 29 | 70 | 10 |
| MA-12-19 | CTC 19 | — | 20 | 14 | 10.7 | 39.5 | 37 | 27 | 29 | 27 | 29 | 76 | 10 |
| MA-16-19 | CTC 19 | — | 20 | 14 | 14 | 42.5 | 40 | 32 | 34.5 | 27 | 29 | 105 | 8 |
| MA-22-25 | CTC 25 | — | 26 | 14 | 18.9 | 48 | 49 | 36 | 39 | 36 | 39 | 150 | 6 |
| MA-28-31 | CTC 31 | — | 32 | 16 | 24.5 | 54.5 | 57 | 46 | 50 | 46 | 50 | 250 | 4 |
| MA-36-39 | CTC 39 | — | 39 | 18 | 32 | 59.5 | 65 | 54 | 58.5 | 54 | 58.5 | 357 | 3 |
| MA-42-51 | CTC 51 | — | 51 | 18 | 38.1 | 66.5 | 73 | 60 | 65 | 60 | 65 | 534 | 2 |
| MA-54-63 | CTC 63 | — | 64 | 20 | 49.4 | 80.5 | 91 | 75 | 81 | 77 | 84 | 938 | 1 |
| MA-70-75 | CTC 75 | — | 77 | 27 | 60.8 | 104 | 111.5 | 95 | 103 | 95 | 103 | 1 | |
| Material: Body: Zinc alloy die casting, blackheart malleable cast iron | |||||||||||||
| Notes | |||||||||||||
Note: For the ordering example of nominal size 82-82, please refer to the MS publication page (P26).
