Yamato Electric MH Series 45° Angle Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MH Series

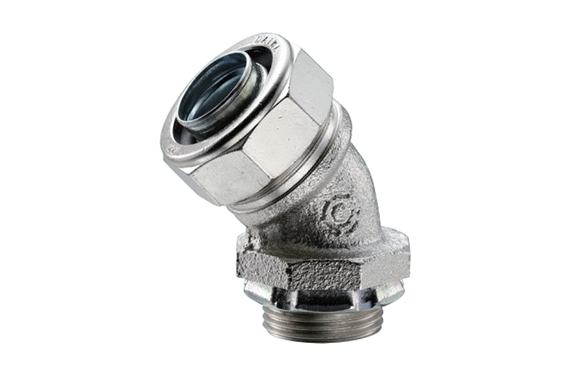

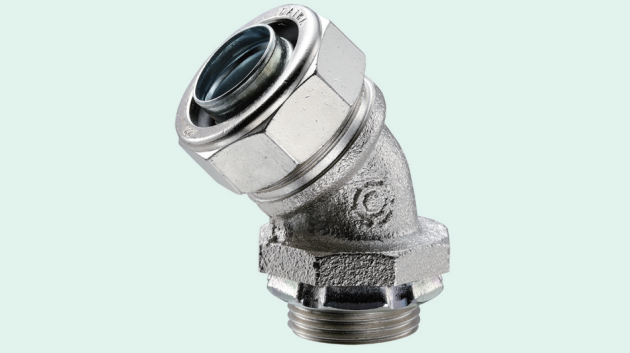

45° Angle Connector MH
- This is a standard 45° angle connector for connecting control panels and flexible conduits.
- It features a guide collar that protects both the inner and outer diameters of the flexible conduit end, and a specially developed tightening ring, ensuring reliable tightening and securing.
- Liquid-proof/Dust-proof structure: Protection class IP67 (Refer to the P12 flexible conduit and connector compatibility table)
Unit: mm
| Symbol | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Thick Steel Conduit A | Inner Dia. B | Inner Dia. C | Length L | Length L1 | Across Flats D | Across Flats D2 | Across Corners D1 | Across Corners D3 | Mass (g) | Quantity/Box (pcs) | ||
| Conduit | Parallel Thread | Recommended Mounting Hole | |||||||||||
| MH-10-16 | CTG 16 | G 1/2 | 21 | 14 | 8.2 | 29 | 41 | 27 | 27 | 29 | 31.5 | 88 | 10 |
| 12-16 | CTG 16 | G 1/2 | 21 | 14 | 10.7 | 30 | 42 | 27 | 27 | 29 | 31.5 | 86 | 10 |
| 16-16 | CTG 16 | G 1/2 | 21 | 14 | 14 | 35 | 48 | 32 | 29 | 34.5 | 31.5 | 140 | 8 |
| 16-22 | CTG 22 | G 3/4 | 27 | 14 | 14 | 35 | 48 | 36 | 36 | 39 | 39 | 144 | 8 |
| 22-22 | CTG 22 | G 3/4 | 27 | 14 | 18.9 | 36 | 49 | 36 | 36 | 39 | 39 | 158 | 8 |
| 28-28 | CTG 28 | G 1 | 34 | 16 | 24.5 | 44 | 60 | 46 | 47 | 50 | 51 | 268 | 5 |
| 36-36 | CTG 36 | G 1 1/4 | 42 | 18 | 32 | 48.5 | 67 | 54 | 55 | 58.5 | 59.5 | 367 | 4 |
| 42-42 | CTG 42 | G 1 1/2 | 48 | 18 | 38 | 54 | 74.5 | 60 | 64 | 65 | 69 | 482 | 3 |
| 54-54 | CTG 54 | G 2 | 60 | 20 | 49.4 | 61 | 86 | 75 | 78 | 81 | 84.5 | 556 | 1 |
| 70-70 | CTG 70 | G 2 1/2 | 76 | 27 | 60.8 | 86 | 116 | 95 | 95 | 103 | 103 | 1608 | 1 |
| Material: Body: Blackheart malleable cast iron | |||||||||||||
| Notes | |||||||||||||
For optional nominal sizes, please inquire.
