Yamato Electric MS-Pg Series Pg Thread Straight Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MS-Pg Series

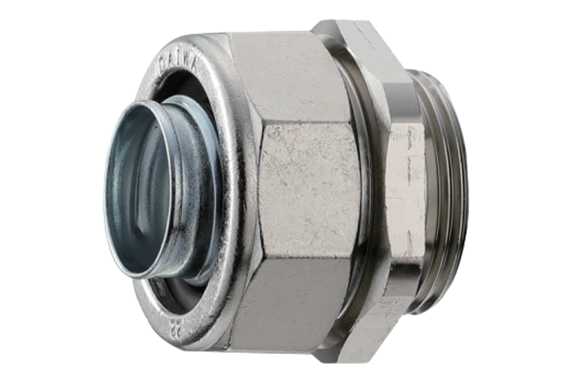

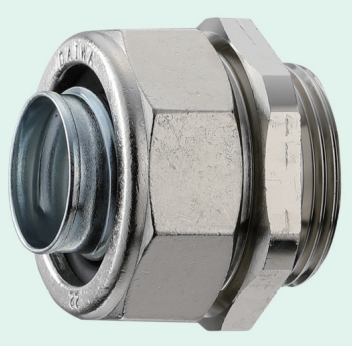

Pg Thread Straight Connector MS-Pg
- This is a connector that connects to a Pg thread (DIN standard).
- Please use this for connecting industrial multi-pole connectors (Han) and flexible connectors. (See page 279)
- Seal packing and lock nuts are not included.
- Liquid and dustproof structure: The flexible connector connection part has a protection rating of IP67 (see the compatible connector chart on page 12).
Unit: mm
| Symbol | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

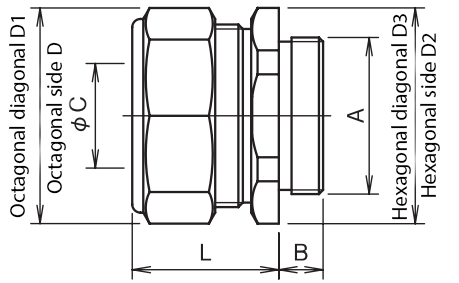

| Designation | Thread Designation A | Thread Designation B | Inner diameter C | Length Before Tightening | Side D | Diagonal D1 | Side D2 | Diagonal D3 | Weight (g) | Quantity per Box (pcs) | ||
| MS-10-Pg11 | Pg11 | 7 | 8.2 | 22 | 27 | 29 | 27 | 29 | 58 | 25 | ||
| MS-12-Pg11 | Pg11 | 7 | 10.7 | 23 | 27 | 29 | 27 | 29 | 52 | 25 | ||
| MS-12-Pg13.5 | Pg13.5 | 7 | 10.7 | 23 | 27 | 29 | 27 | 29 | 54 | 25 | ||
| MS-12-Pg16 | Pg16 | 8 | 10.7 | 23 | 27 | 29 | 27 | 29 | 56 | 25 | ||
| MS-16-Pg16 | Pg16 | 8 | 14 | 26.5 | 32 | 34.5 | 32 | 35 | 86 | 16 | ||
| MS-22-Pg21 | Pg21 | 8 | 18.9 | 26.5 | 36 | 39 | 36 | 39 | 98 | 12 | ||
| MS-28-Pg29 | Pg29 | 8 | 24.5 | 29 | 46 | 50 | 46 | 49 | 160 | 9 | ||
| MS-36-Pg29 | Pg29 | 8 | 30* | 30.5 | 54 | 58.5 | 55 | 59 | 215 | 5 | ||
| Material | Main body: Brass | |||||||||||
| Remarks | The minimum internal diameter of the main body is provided. | |||||||||||
For optional designations, please contact us for more details.
The method for displaying the designation is as follows:
(Example) MS-12-Pg11
12 means Flexible connector designation
Pg11 means Pg thread designation
