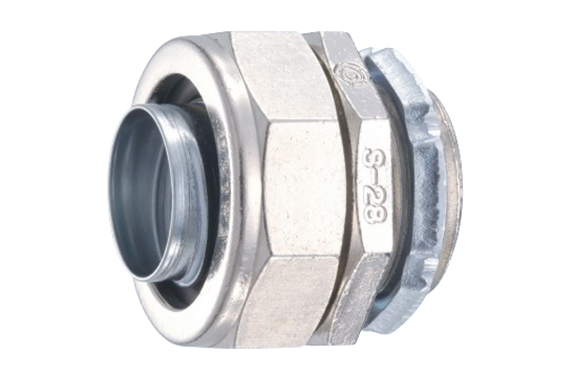

Yamato Electric MS Series Straight Connector
Manufacturer: Yamato Electric Co., Ltd.
Model: MS Series

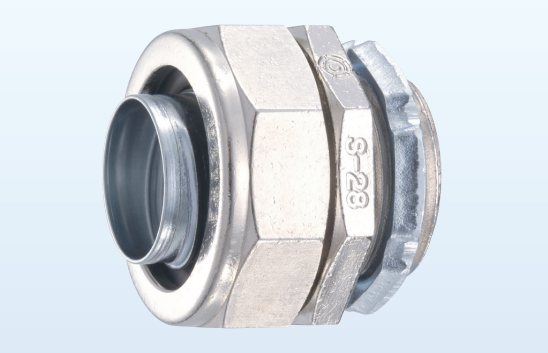

Straight Connector MS
- This is a standard straight connector used to connect a control panel and a flexible conduit.
- It features a guide collar that protects both the inner and outer diameters of the flexible conduit end, and a newly developed tightening ring, ensuring reliable tightening and securing.
- Liquid-proofing/Protective structure: Protection class IP67 (Refer to the P13 flexible conduit and connector compatibility table)

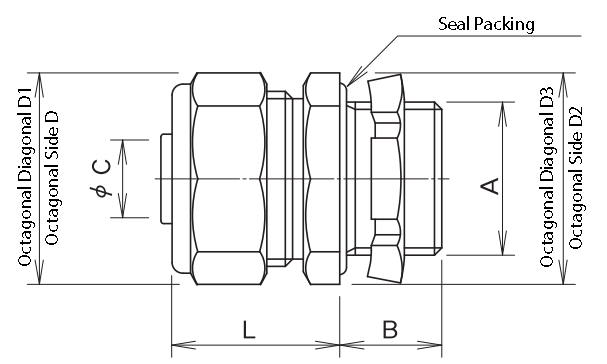

Unit: mm
| Symbol | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Threaded Steel Conduit A | Inner Dia. B | Inner Dia. C | Length L | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | Quantity/Box (pcs) | ||
| Conduit | Parallel Thread | Recommended Mounting Hole | ||||||||||
| MS-10-16 | CTG 16 | G 1/2 | 21 | 14 | 8.2 | 22 | 27 | 29 | 27 | 29 | 58 | 25 |
| MS-12-16 | CTG 16 | G 1/2 | 21 | 14 | 10.7 | 23 | 27 | 29 | 27 | 29 | 58 | 25 |
| MS-16-16 | CTG 16 | G 1/2 | 21 | 14 | 14 | 26.5 | 32 | 34.5 | 32 | 34.5 | 82 | 20 |
| MS-16-22 | CTG 22 | G 3/4 | 27 | 14 | 14 | 26.5 | 32 | 34.5 | 36 | 39 | 98 | 16 |
| MS-22-22 | CTG 22 | G 3/4 | 27 | 14 | 18.9 | 26.5 | 36 | 39 | 36 | 39 | 92 | 16 |
| MS-28-28 | CTG 28 | G 1 | 34 | 16 | 24.5 | 29 | 46 | 50 | 46 | 50 | 164 | 9 |
| MS-36-36 | CTG 36 | G 1 1/4 | 42 | 18 | 33.1 | 30.5 | 54 | 58.5 | 54 | 58.5 | 200 | 6 |
| MS-42-42 | CTG 42 | G 1 1/2 | 48 | 18 | 38.1 | 33 | 60 | 65 | 60 | 65 | 250 | 5 |
| MS-54-54 | CTG 54 | G 2 | 60 | 20 | 49.4 | 36.5 | 75 | 81 | 75 | 81 | 430 | 3 |
| MS-70-70 | CTG 70 | G 2 1/2 | 76 | 27 | 60.8 | 50 | 95 | 103 | 95 | 103 | 1000 | 1 |
| MS-82-82note | CTG 82 | G 3 | 88 | 30 | 71.6 | 60 | 110 | 119 | 110 | 119 | 1500 | 1 |
| Material: Body: Zinc alloy die casting, blackheart malleable cast iron | ||||||||||||
| Notes | ||||||||||||
Unit: mm
| Symbol | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | Threaded Steel Conduit A | Inner Dia. B | Inner Dia. C | Length L | Across Flats D | Across Corners D1 | Across Flats D2 | Across Corners D3 | Mass (g) | Quantity/Box (pcs) | ||
| Conduit | Parallel Thread | Recommended Mounting Hole | ||||||||||
| MS-10-19 | CTC 19 | ー | 20 | 14 | 8.2 | 22 | 27 | 29 | 27 | 29 | 55 | 25 |
| MS-12-19 | CTC 19 | ー | 20 | 14 | 10.7 | 23 | 27 | 29 | 27 | 29 | 51 | 25 |
| MS-16-19 | CTC 19 | ー | 20 | 14 | 14 | 26.5 | 32 | 34.5 | 32 | 34.5 | 78 | 20 |
| MS-22-25 | CTC 25 | ー | 26 | 14 | 18.9 | 26.5 | 36 | 39 | 36 | 39 | 88 | 16 |
| MS-28-31 | CTC 31 | ー | 32 | 16 | 24.5 | 29 | 46 | 50 | 46 | 50 | 155 | 9 |
| MS-36-39 | CTC 39 | ー | 39 | 18 | 32 | 30.5 | 54 | 58.5 | 54 | 58.5 | 192 | 6 |
| MS-42-51 | CTC 51 | ー | 51 | 18 | 38.1 | 33 | 60 | 65 | 60 | 65 | 276 | 5 |
| MS-54-63 | CTC 63 | ー | 64 | 20 | 49.4 | 36.5 | 75 | 81 | 75 | 81 | 454 | 3 |
| MS-70-75 | CTC 75 | ー | 77 | 27 | 60.8 | 50 | 95 | 103 | 95 | 103 | 1014 | 1 |
| Material: Body: Zinc alloy die casting, blackheart malleable cast iron | ||||||||||||
| Notes | ||||||||||||
Note:
- Regarding nominal size 82-82, the parts composition varies slightly depending on the flexible conduit used.
- For nominal size 82-82 only, please choose from the following three types of model numbers.
- Other than for nominal size 82-82, “A,” “C,” and “S” are not attached.
MS – 82A – 82
Applicable Flexible Conduit Model
A：FAG、FAW、FAN
C：FCV
S：FSV、FSW、FSN
